Container Volume A 25L B 10L Vacuum Machine For Motor And Stator Epoxy Resin Potting

Name: Container Volume A 25L B 10L Vacuum Machine For Motor And Stator Epoxy Resin Potting
Brand: Daheng
Price: 48 USD

Quality Container Volume A 25L B 10L Vacuum Machine For Motor And Stator Epoxy Resin Potting wholesale

Place of Origin : Guangdong, China

Brand Name : Daheng

Model Number : VGB-450Q

Packaging Details : Wooden carton
Automatic vacuum filling machine epoxy resin and silicone AB two components glue machine

Supply Ability : 100 Unit/Units per Month

Price : $48,000.00/sets 1-1 sets

Condition : New

Weight (KG) : 800

Showroom Location : Turkey, Italy, Viet Nam, Indonesia, India, Mexico, Russia, Thailand, Malaysia, Australia, None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : PLC, Motor, Pump

Warranty : 1 Year

Definition : Motor and Stator Epoxy Resin Encapsulant Potting Machine

XYZ Working Area : 1200x1200mm customized

Size : 1600mm*1200mm*1500mm

Weight : 800kg

Mixing Ratio : From 1:1 to 10:1(Adjustable)

Stiring Method : Static or Dynamic

Pump : Daheng Patent Plunger Pump

Out-Gluing Rate : 5-66g/5s

Mixing Precision : +/-1%

Container Volume : A:25L B:10L

Contact Now

Product Overview

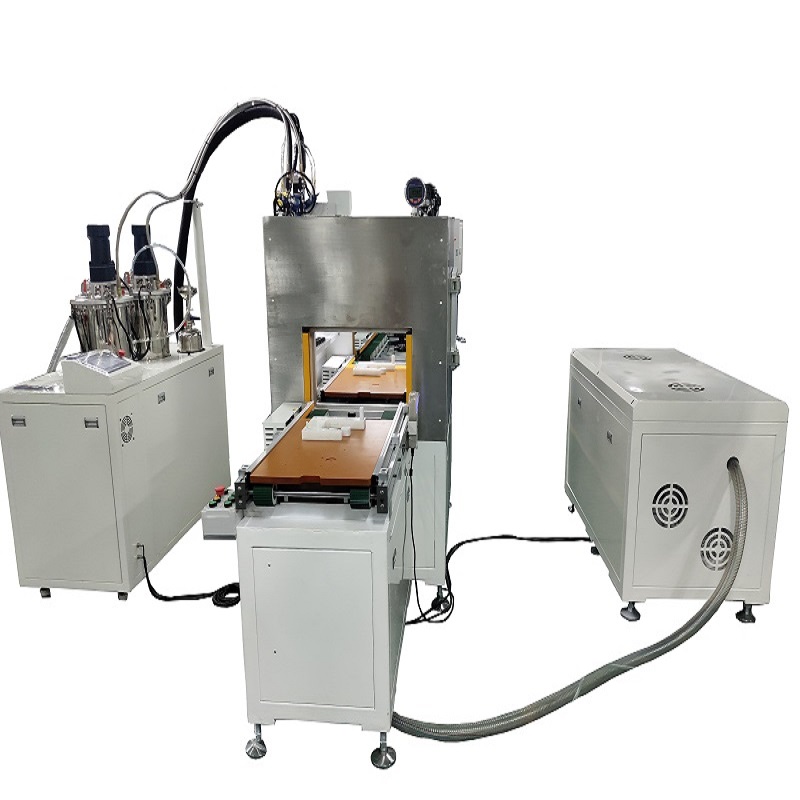

Fully automatic Vacuum glue potting machine integrated with material feeding , glue potting and finished product convoying functions to one equipment , the machine made up with fully automatic mixing machine ,vacuum three axis glue dispenser, Chain conveyor line and so on .This equipment can be used indeeped or be connected with digital data and apply glue potting under negative pressure and normal pressure . It is widely apply for silicone , epoxy Crystal glue , PU(polyurethane) two component glue , which is suitable for different glue potting process requirements.

FEATURES AT A GLANCE

1.1 Product feed in and out automatically
1.2 Glue preprocessing (tank stir , tank bubble degas , heating , Tank filter , vacuum degas)
1.3 Glue ratio and quantify mixture .
1.4 Glue filling evenly .
1.5 Through programming to realize glue potting for different products sizes .
1.6 Fully automatic weigh system to re-inspect the glue amount for each product .
1.7 Set fixed time to let glue discharge and prevent glue mixture curing inside the tube .
1.8 Autumatically clean the mixing part of the machine.
1.9Transmit data on MES system .

Container Volume A 25L B 10L Vacuum Machine For Motor And Stator Epoxy Resin Potting

Applications:

Motor stator ,electric toothbrush driver ,Electronic coil, ignition package , auto parts and other parts or products which aimed to pot resins under real vacuum environmental .

PRODUCT SPECIFICATIONS

Glue ratio	1 :1 ---10:1
Ratio accuracy	±2%
Glue-out speed	1g/s --20g/s
Glue-out accuracy	±2%
Program memory	99个
Glue viscosity	50cps~8000cps(Reference number)
Operation Mode	Manual mode /Automatic mode
Ratio Control	PLC/ Double plunger pump (Can change different type of metering pumps)
Flow Control	Digital input
Parameter display	Pointer / digital display
Automatic control system	Touch screen / button switch/ third party signal
Mixing Method	Static mixing / Automatic cleaning
Storage Tank	Stainless steel A(40L)and B(40L)
		Stainless steel cleaning berrel C(5L)
		Vacuum degas(-0.1MPa),8L/s
		Liquid level sensor(Low liquid level/high liquid level)
		A/B Tank stirring
		AB glue constant temperature heating(Room Temperature—80°)
		Glue filter
Power	220V/50Hz/5000W
Input air pressure	0.4MPa—0.8MPa
Outer dimension	Glue Potting Machine:995mm×600mm×1500mm
Frame Materials	Cold rolled steel/industrial aluminum/stainless steel/sheet metal

About Company

■ About D&H

D&H is a company who has its own core tech and provides professional glue controlling solutions in the industry.In 2006 we developed the patent-“double cylinder plunger pump”,the glue dispensing machine with such a pump type was launched into the market successfully.This patent design becomes the heart of a new generation of metering device.The new design leads the liquid controlling device into a direction of high filling,high precision ,high crystallization,high output speed and production line.

Certifications

■ QUALIFICATION CERTIFICATE

We have more than 30 national patents, and are at the industry pioneer level in the core technologies of glue potting and dispensing

Sales Network & Customers

Exhibition

Packing & Delivery

■ Standard Wooden Case with Vacuum Package

● By air, for sample and small package, international express like DHL, UPS, EMS...
● By sea, for large package and quantity;
● Other ways as customer requested.

FAQ

Q:Do you offer oversea service? A:We have overseas service center in some countries, we can support local service as per discussion. And we also can offer oversea service if customer required, engineer will offer face to face service.
Q:How dose your factory do regarding quality control? A:We assure 1 year warranty for the main part,also we offer spare part for back up. Please check with sales engineer in detail.
Q:What are your payment terms? A:Normally, 30% advance by T/T and balance paid off before delivery.
Q:Are you a factory or trading company ? A:We are a factory with SGS certified and more than 30 patents,and cooperate with different customers coverd about 50 countries for over 19 years.
