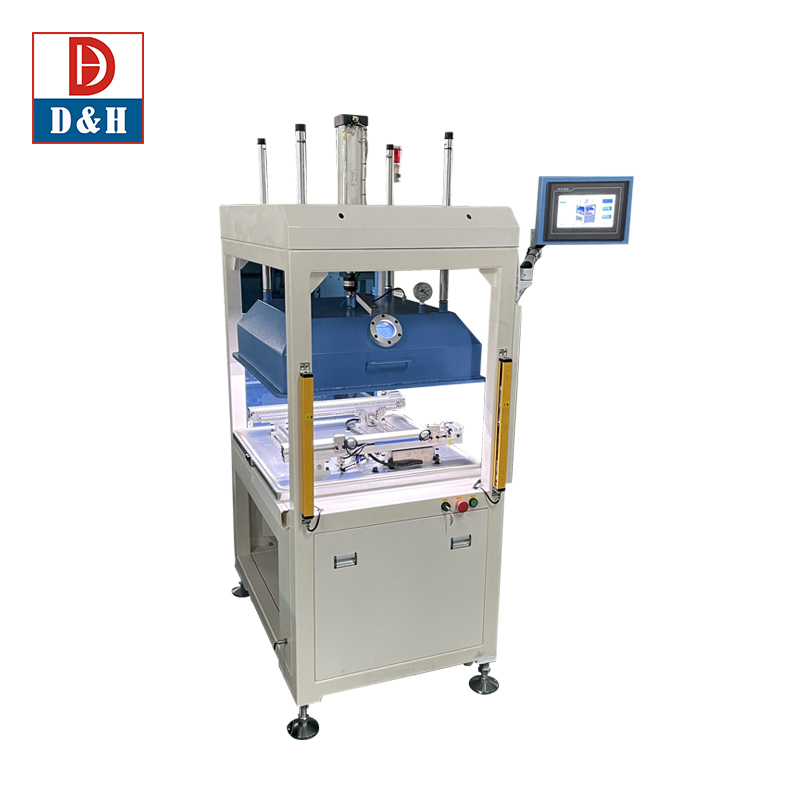

40L Tank Capacity Vacuum Chamber Potting Machine For AB Potting Epoxy Silicone PU Resin

Place of Origin : Guangdong, China

Brand Name : Daheng

Price : $39,000.00/pieces 1-1 pieces

Type : Gluing Machine

Applicable Industries : Manufacturing Plant

Showroom Location : Turkey, Italy, Viet Nam, Russia, Thailand, Malaysia

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Core Components : PLC, Pump

Application : Chemical, Reverse Sensor and electronic components , ignition coils...

Packaging Type : Polywood case

Packaging Material : Plastic, Polywood-case

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 230V,380V

Weight : 800 KG

Warranty : 1 Year

Key Selling Points : High-accuracy

Name : vacuum chamber for AB potting epoxy silicone pu resin

Functions : Vacuum in low pressure

Feeding way : Automatic

Control mode : PLC and communication module

working area : 400x600x100mm or customized

tank compacity : 10L,25L,40L Optional

Speed : 0-300mm/s

Ratio : 1:1-10:1

Applied Materials : two-component adhesive pu , epoxy , silicones

Contact Now

Product Overview

Vacuum chamber automated vacuum potting machine
* Suitable for large, heavy duty products ,vacuum pressure adjustable
* Applications: Reverse Sensor, Electronic Circuit Board, Electronic Ballast ,air Filters, LED products ,Electronic components,Crafts,Ads modules, Capacitors, Power supply, Transformer, end cap for filter, solar junction box ,Power module, Ignition coil, Sensor, Photovoltaic module, Photovoltaic inverter. Etc
FEATURES AT A GLANCE
Features
Oversized vacuum box
Suitable for large, heavy duty products
Vacuum pressure adjustable
40L Tank Capacity Vacuum Chamber Potting Machine For AB Potting Epoxy Silicone PU Resin
40L Tank Capacity Vacuum Chamber Potting Machine For AB Potting Epoxy Silicone PU Resin
Workshop picture
40L Tank Capacity Vacuum Chamber Potting Machine For AB Potting Epoxy Silicone PU Resin
Left elevation
40L Tank Capacity Vacuum Chamber Potting Machine For AB Potting Epoxy Silicone PU Resin
Front elevation
PRODUCT SPECIFICATIONS
Glue ratio
1 :1 ---10:1
Ratio acurracy
±2%
Glue-out speed
1g/s --24g/s
Glue-out accuracy
±2%
Program memory
99 pcs
Glue viscosity
50cps~8000cps(Reference number)
Opearation Mode
Manual mode /Automatic mode
Ratio Control
PLC/ Double plunger pump (Can change different type of metering pumps)
Flow Control
Digital input
Parameter display
Pointer / digital display
Automatic control system
Touch screen / button switch/ third party signal
Mixing Method
Static mixing / Automatic cleaning
Storage Tank
Stainless steel A and B(10L,25L ,40L optional)
Stainless steel cleaning berrel C(7L)
Vacuum degas(-0.1MPa)
Liquid level sensor(Low liquid level/high liquid level)
A/B Tank stirring
AB glue constant temperature heating(available)
Glue filter
Power
220V/50Hz/5000W
Outer dimension
Glue Potting Machine:995mm×600mm×1500mm
Frame Materials
Cold rolled steel/industrial aluminum/stainless steel/sheet metal
40L Tank Capacity Vacuum Chamber Potting Machine For AB Potting Epoxy Silicone PU Resin
Applciation 1
40L Tank Capacity Vacuum Chamber Potting Machine For AB Potting Epoxy Silicone PU Resin
Application 2
40L Tank Capacity Vacuum Chamber Potting Machine For AB Potting Epoxy Silicone PU Resin
Applied resin : PU , epoxy , silione
Successful Project
40L Tank Capacity Vacuum Chamber Potting Machine For AB Potting Epoxy Silicone PU Resin
40L Tank Capacity Vacuum Chamber Potting Machine For AB Potting Epoxy Silicone PU Resin
Professional logistics
One-stop service from our factory to your plant .
