Industrial Machinery LED Display Vacuum Resin Potting Machine with Automatic Grade

Product Categories

Guangzhou Zhengqi Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Model NO. : PGB-700

Driven Type : Electric

Transport Package : Wooden Packing

Trademark : D&H

Origin : China

HS Code : 8424899990

Supply Ability : 50PCS Per Month

Precision : High Precision

Condition : New

Certification : CE

Warranty : 12 Months

Automatic Grade : Semiautomatic

Installation : Vertical

Customization : Available | Customized Request

Contact Now

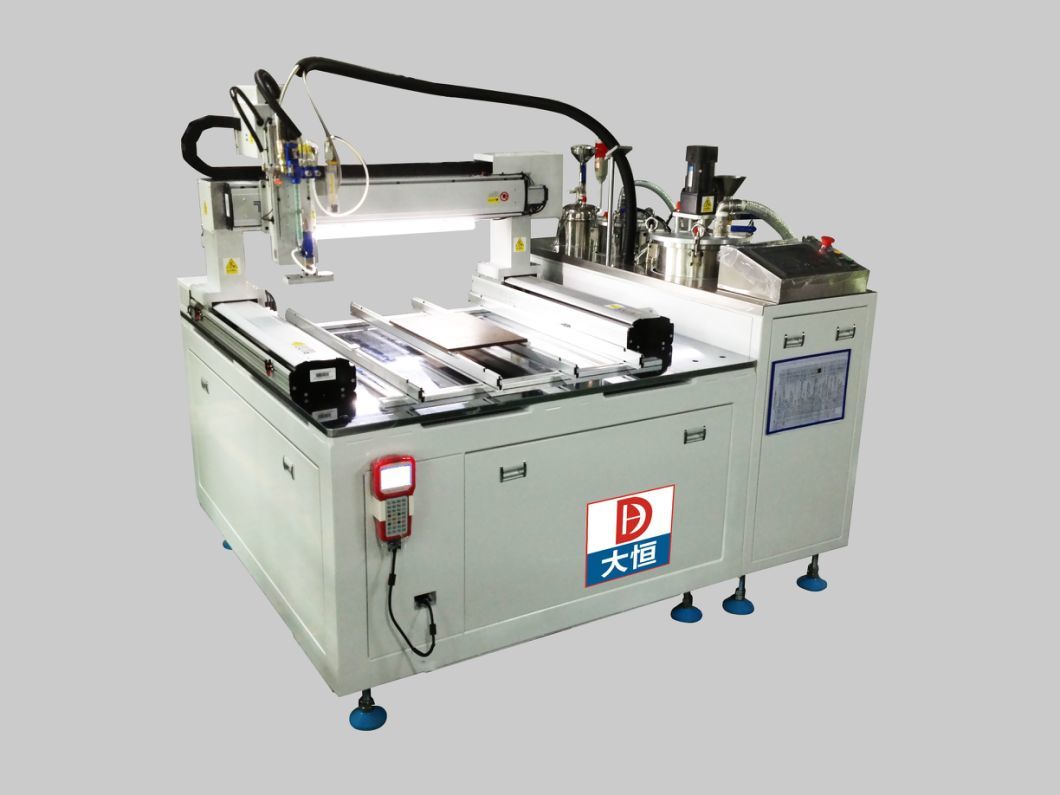

Industrial Machinery LED Display Vacuum Resin Potting Machine 3 Axis Epoxy Glue Dispensing Robot

Model No:	PJL-100
Mixing Ratio	100:100-10:100(1:1-1:10) Adjustable
Metering precision	±1%
Outflow speed	1g/sec-15g/sec
Mixing precision	±1%
Mixing mode	Dynamic mixing /Static mixing
Glue Viscosity	Lower than 20000 CPS(mPa·s)
Control mode	PLC + Touch Screen
Control system	Independent R&D
Measuring mode	Stepping motor/High-precision, wear-resistant,long-life Gear pump
Working voltage	AC 220V 50Hz/60Hz
Power requirement	3.55KW
Air pressure requirement	4.5-8KG
Machine Dimension	1500(L)1200(W)1500(H)mm
Weight	approx 260 KG
Work environment	Humidity: 20%~98%RH; Temperature: 0~+40°c

Model	PGB-700	Voltage	220V-380V
XYZ axis	70070080(mm)	Application	led,electronic,filter
Glue support	Silicone, epoxy resin, urethane	Certification	CE, RoHS
Power	3600w	Warranty	1years
Item Name	mixing and dispensing	Function	DC 12V-14V
Ratio support	1:1 to 10:1	MOQ	1 Piece
Gluing Speed	5-66g/5s Adjustable	Price	depends your glue feature
Air Pressure:	0.5-0.7Mpa	Port	Huangpu
