Vertical Installation High Precision Ab Glue Epoxy Resin Silicone USB Speaker Dispenser

Brand Name : D&H

Model Number : PGB-810

Certification : CCC, CE

Place of Origin : MADE IN CHINA

MOQ : 1 Unit

Price : Nn

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5-8 Working days

Delivery Time : 5-8 Working days

Packaging Details : 155X135X170 CM

Model NO. : PGB810

Installation : Vertical

Driven Type : Electric

Glue & Ratio : 1:1 to 20:1, Epoxy, Silicone, PU, UV

Certificate : CE, SGS

Xyz Working Area : 1500*550*80mm

Flow Speed : 0-150g/5s, or Customized

Additional Function : Heating, Vacuum, Self-Refilling, Self-Cleaning

Transport Package : Wood Box

Specification : 1500x1200x1500mm

Trademark : DH

Origin : China

After-sales Service : One Year

Precision : High Precision

Condition : New

Warranty : 12 Months

Automatic Grade : Automatic

Customization : Available | Customized Request

Contact Now


Vertical Installation High Precision Ab Glue Epoxy Resin Silicone USB Speaker Dispenser

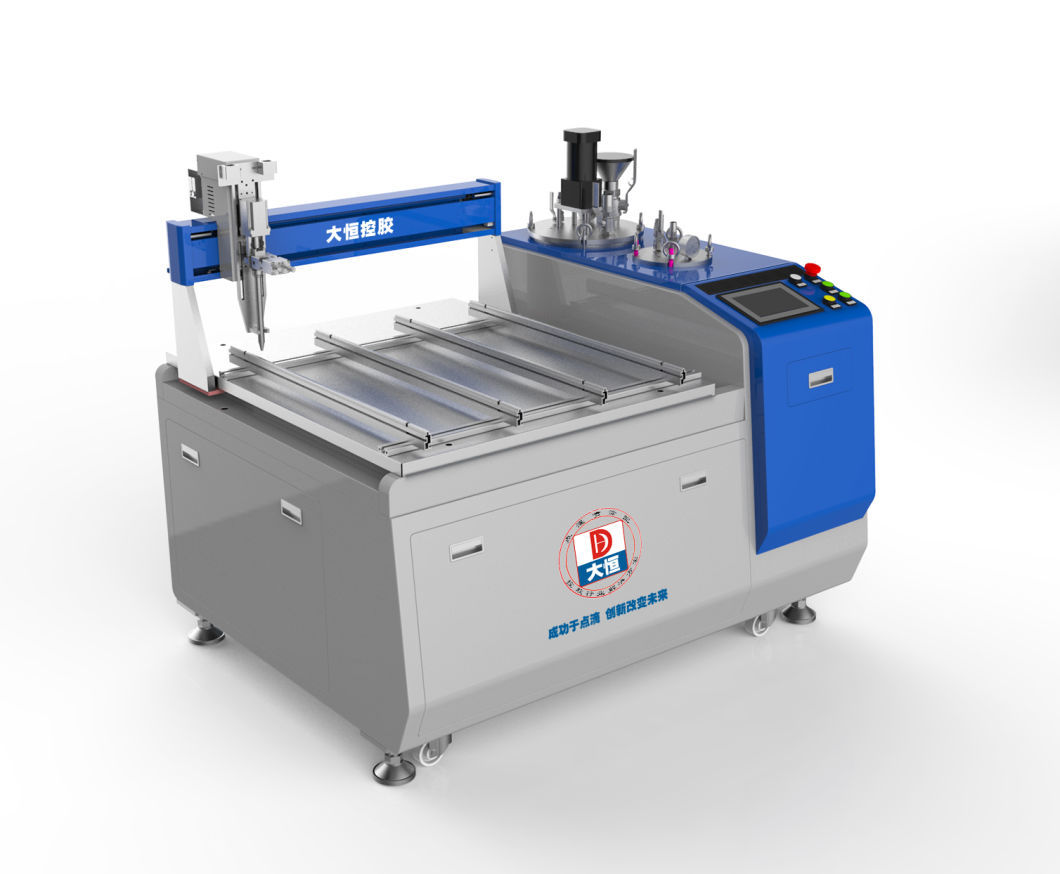

Automatic glue dispensing machine PGB710

Features and Benefits:
1, A system of metering, mixing and potting.
2, Accurate metering and even mixing helps to avoid possible waste of glue.
3, Shot size and positioning keep consistent, fast.
4, Good universality makes PGB710 suitable for applications of LED, electric and others glue potting needed.
5, Easy to program and operate.
6, Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing backflow device and other functional device.

Vertical Installation High Precision Ab Glue Epoxy Resin Silicone USB Speaker Dispenser
Vertical Installation High Precision Ab Glue Epoxy Resin Silicone USB Speaker Dispenser


Application:
Industry: Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, electronic ballast, other electronic products and LED products where glue potting demanded.

Vertical Installation High Precision Ab Glue Epoxy Resin Silicone USB Speaker Dispenser

Glue:
Epoxy, silica gel, AB glue, PU and other glue which need matching

Optional Function:
1, evacuation
2, heating
3, Geared pump & plunger piston pump are available; Customers can choose to needs.
4, Control-card will be chosen to be added in to program to needs.
Model & Type PGB-710D Full Auto Gluing Machine Dispenser
Certificate CE, SGS
Dimension 1500x1200x1500mm
N.W. 600kg
XYZ Working Area 700x700x80mm
Flow Speed 0-150g/5s, or customized
Moving Speed 0-300mm per second
Glue & Ratio 1:1 to 20:1, Epoxy, Silicone, PU, UV
Repeatability +/-0.02g
Accuracy +/- 1%
Power AC220V or AC 380V
Total Power Consume 3kw - 5kw
Additional Function Heating, Vacuum, Self-refilling, Self-cleaning
Application LED module, display, LED lights, power supply, driver, motor, sensor, and transformer and so on^

AB potting machine is composed of Five Systems:

  1. Automatic material-feeding system
  2. High precision pump metering system
  3. Dynamic/Static mixing system
  4. Three-axis motion system
  5. Programming control system.

AB-component materials flows into the pump through the feeding system (AB tanks) separately by the self-suction force of the metering pump.

Features&Functions:


Strong versatility / Multiple configuration / High production capacity / High precision
  1. Auto feeding : take use of vacuum pressure to feed materials into A&B tank separately.
  2. Tank Stirring : A and B tank configure with stirring motors and blades to prevent material sediment in the tank bottom .
  3. Heating : Tank , pipe , pumps are optional with heaters to assure the whole system can be heating from room temperature to 90°C adjustable.
  4. Vacuum : A &B tank vacuum for degas the bubble inside material .
  5. Dynamic mixing : Configuring dynamic motor and mixer to mix A and B fluids evenly.



Advantages:

1,Accurated metering and even mixing helps to avoid the waste of material.
2,Dispensing volume and positioning keep machine work consistent and fast.
3,Good universality
4,Easy to program and operate.
5,Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing back-flow device and other functional device.


Vertical Installation High Precision Ab Glue Epoxy Resin Silicone USB Speaker Dispenser
