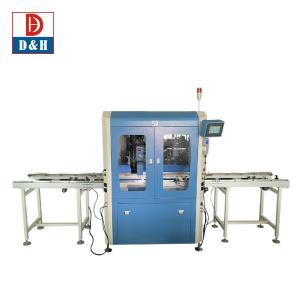

Energy Mining Epoxy Resin Dispensing Robot 220V/380V Optional Automatic Spray Glue Machine

Type : Gluing Machine

Applicable Industries : Manufacturing Plant, Energy & Mining

Showroom Location : Turkey, Italy, Viet Nam, Indonesia, Russia, Thailand, Malaysia

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 13 months

Core Components : PLC, Pump

Condition : New

Application : PU,epoxies ,silicone

Packaging Type : Polywood case

Packaging Material : Plastic, Polywood case

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V /380V Optional

Place of Origin : Guangdong, China

Brand Name : D&H

Weight : 500 KG

Warranty : 13 months

Key Selling Points : High Productivity

Definition : Epoxy potting filling machine

Feeding way : Automatic Feeding

Function : Vacuum , heat , stir , self-clean

mixing way : Dynamic /static mixing

tank compacity : 10L,25L , 40L or customized

Precision : ±2%

Glue-out precision : 0.5-12g/s

speed : 0-300mm/s

Pump precision : 0.2g/s

Control system : PLC programming

Packaging Details : According to the customer requirement

Port : Guangzhou

Supply Ability : 50 Piece/Pieces per Month MOQ=1PCS

Price : $25,000.00/pieces 1-1 pieces

Contact Now

Details Images

Epoxy resin dispensing robot epoxy machine glue dispenser automatic spray glue machine

Double component potting system

We Daheng Automation specialize in different types of potting and dispensing system. No matter what your resin application requirements look like: we can do most of them in our fully equipped testing room.

We can handle 1- and 2-component polyurethanes, epoxies,acrylics, silicone, temperature, humidity and UV curing materials. They can be from low- to high-viscosity, filled or unfilled and even high abrasive for thermal conductivity.

Potting and Isolation is the process of embedding electronic components & assemblies in a liquid resin (potting compounds) to protect them against rough environment conditions.

Potting can be performed in atmosphere pressure or even under vacuum, if high voltage insulation and high temperature differences are needed. Isolation of parts will stop corrosion of metals and reduce damage caused by vibration and mechanical stress.

Energy Mining Epoxy Resin Dispensing Robot 220V/380V Optional Automatic Spray Glue Machine

AB potting machine is composed of Five Systems

1. Automatic material-feeding system
2. High precision pump metering system
3. Dynamic/Static mixing system
4. Three-axis motion system
5. Programming control system.

AB-component materials flows into the pump through the feeding system (AB tanks) separately by the self-suction force of the metering pump.

Features&Functions

Strong versatility / High production capacity / High precision

* Auto feeding :take use of vacuum pressure to feed materials into A&B tank separately.

* Tank Stirring :A and B tank configure with stirring motors and blades to prevent material sediment in the tank bottom .
* Heating : Tank , pipe , pumps are optional with heaters to assure the whole system can be heating from room temperature to 90°C adjustable.
* Vacuum : A &B tank vacuum for degas the bubble inside material .
* Dynamic mixing : Configuring dynamic motor and mixer to mix A and B fluids evenly.

*Auto cleaning : self-cleaning and fully auto cleaning system assure machine keep in clean without any materials cure inside .

Advantages:

1、Accurated metering and even mixing helps to avoid the waste of material.
2、Dispensing volume and positioning keep machine work consistent and fast.
3、Good universality
4、Easy to program and operate.
5、Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing back-flow device and other functional device.

Tech Data

ITEM	Parameter
Mixing ratio	1:1--10:1 adjustable
Working range	600400100mm
Displacement speed	250mm/s（speed）
Out-glue speed	1-24g/s（base on the glue ratio）
Accuracy	±2%（output volume）±2%（mixing）
tolerance	≤0.2mm
Flow control	Digital input
Program memory	99pcs
Motion trail	Dot , line ,curve ,circle
Automatic controlling system	Touch screen (to achieve program programming, modification, storage and so on
Out-glue control system	AB glue back suction valve, achieve AB glue independent operation
programmatically	Tech programming
Mixing method	dynamic mixing
Power supply	220V/50Hz/1500W
Air source	0.5-0.8Mpa
Viscosity range	50-20000cps
Outer dimension	1500L1200W1600H mm
A tank	25L stainless tank（optional）
B tank	10L stainless tank（optional）
Others	AB tank 、A pump、AB pipeline heating function

Application

1. Potting&Encapsulation &Casting: electronics components , PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, electronic ballast , motor ,junction box ，switches， art mold ,aviation parts, aerospace parts and so on.

2. Dispensing&Dosing: LED strip , led lamp , led bulb , aluminum,led screen , display module / medical parts，medical liquid filling and so on ...

3. Bonding&doming: LCD screen ,LOCA bonding，ABS plastic / different types of stickers , badge , keychains , souvenirs ,arts , photo frame , and other arts graphics ect .

Main Applications in electronics appliances

Transformer , capacitance , power module , regulating plate ,protection module , generator , pressure
package , solid relay ,fault indicator , Sensors , junction box , clutch , wave filter , water meter , battery cover , rectifier etc. ...

Applicable Materials

1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials.
Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, dual-component compound material UV materials and so on .
