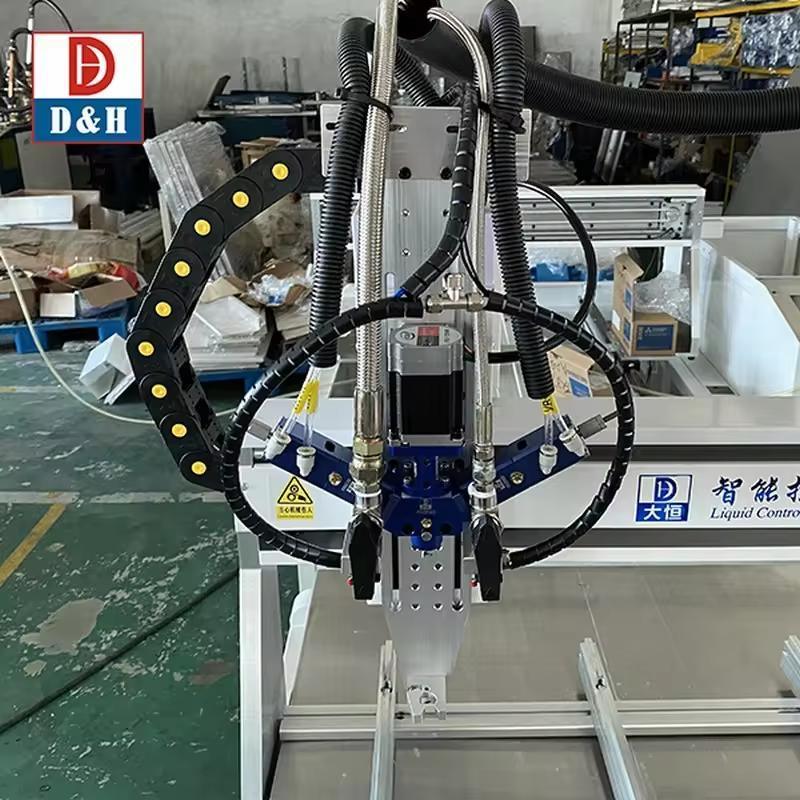

Daheng Patent Plunger Pump Two Component Silicone Glue Potting Machine for LED Module

Model NO. : PGB-700

Xyz Working Area : 700*700*30mm

Weight : 260kg

Stiring Method : Static or Dynamic

out-Gluing Rate : 5-66g/5s

Container Volume : a:25L B:10L

Packing Material : LED Module

Ratio : From 1:1 to 10:1

Pump : Daheng Patent Plunger Pump

Mixing Precision : +/-1%

Specification : L1500xW1200xH1500mm

Trademark : Daheng or OEM

Origin : Guangzhou China

HS Code : 85021920

Supply Ability : 50PCS/Month

Automatic Grade : Automatic

Gluing Mode : Piston/Plunger Pump

Glue Type : Ab Glue

Application : Machinery & Hardware

Driven Type : Electric

Packaging : Cartons

Customization : Available | Customized Request

Contact Now

epoxy machine 3d epoxy resin sticker machine epoxy sticker machinee

Machine introduction

Our epoxy doming dispensing machine can help the manufacturer to produce different types of stickers , badge , key chains , arts , photo frame , and other arts which need to dome .

Daheng doming dispensing machine is used to bi-component epoxy , micro-injection , coating , spraying epoxy resin on the surface of the products . The machine is applied double vision location system , and replaces transitional manual injection to dispense different ratio epoxies .

Machine description and working principle
Automatic glue mixing machine is mainly used for a two-component glue( Epoxy/ Silicone/PU,etc adhesive), automatic metering and mixing the ratio of glue. The glue are stored in two barrels separately, according the glue weight ratio and volume demand automatic metering by two sets of precision pumps, supply to a mixing device fully mixing, and then potting/dispensing the desired products.

Daheng Patent Plunger Pump Two Component Silicone Glue Potting Machine for LED Module

D&H is a company who has its own core tech and provides professional glue controlling solutions in the industry.In 2006 we developed the patent-"double cylinder plunger pump",the glue dispensing machine with such a pump type was launched into the market successfully.This patent design becomes the heart of a new generation of metering device.The new design leads the liquid controlling device into a direction of high filling,high precision ,high crystallization,high output speed and production line.
Daheng Patent Plunger Pump Two Component Silicone Glue Potting Machine for LED Module

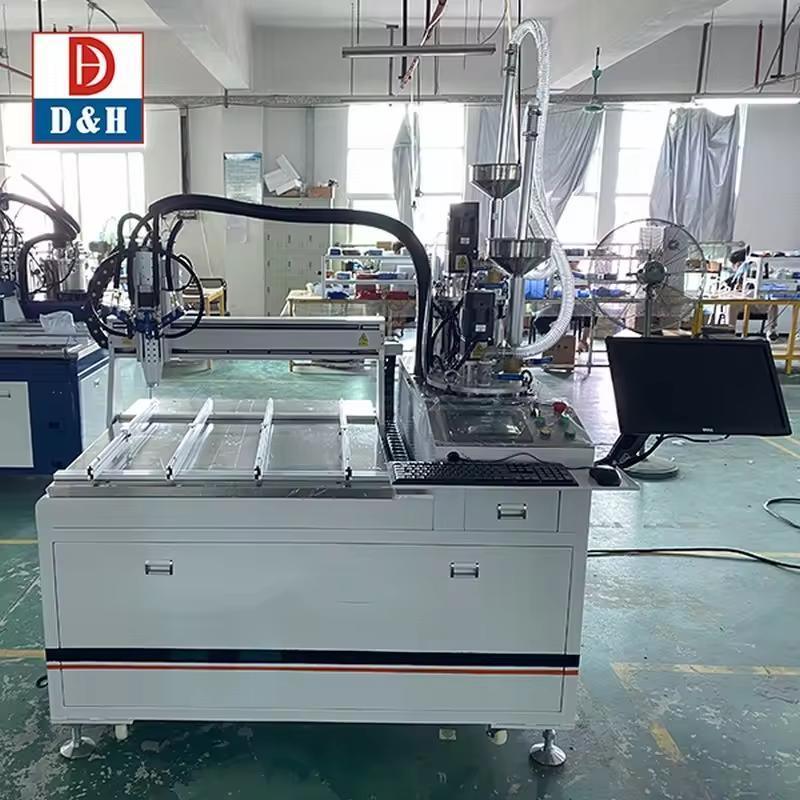

Model & Type	PG-700 Full Auto Gluing Machine Dispenser
Certificate	CE, SGS
Dimension	1500x1200x1500mm
N.W.	260kg
XYZ Working Area	700x700x80mm
Flow Speed	0-66g/5s, or customized
Moving Speed	0-300mm per second
Glue & Ratio	1:1 to 20:1, Epoxy, Silicone, PU, UV
Repeatability	+/-0.02g
Accuracy	+/- 1%
Power	AC220V or AC 380V
Total Power Consume	3kw - 5kw
Additional Function	Heating, Vacuum, Self-refilling, Self-cleaning
Application	LED module, display, LED lights, power supply, driver, motor, sensor, and transformer and so on^
