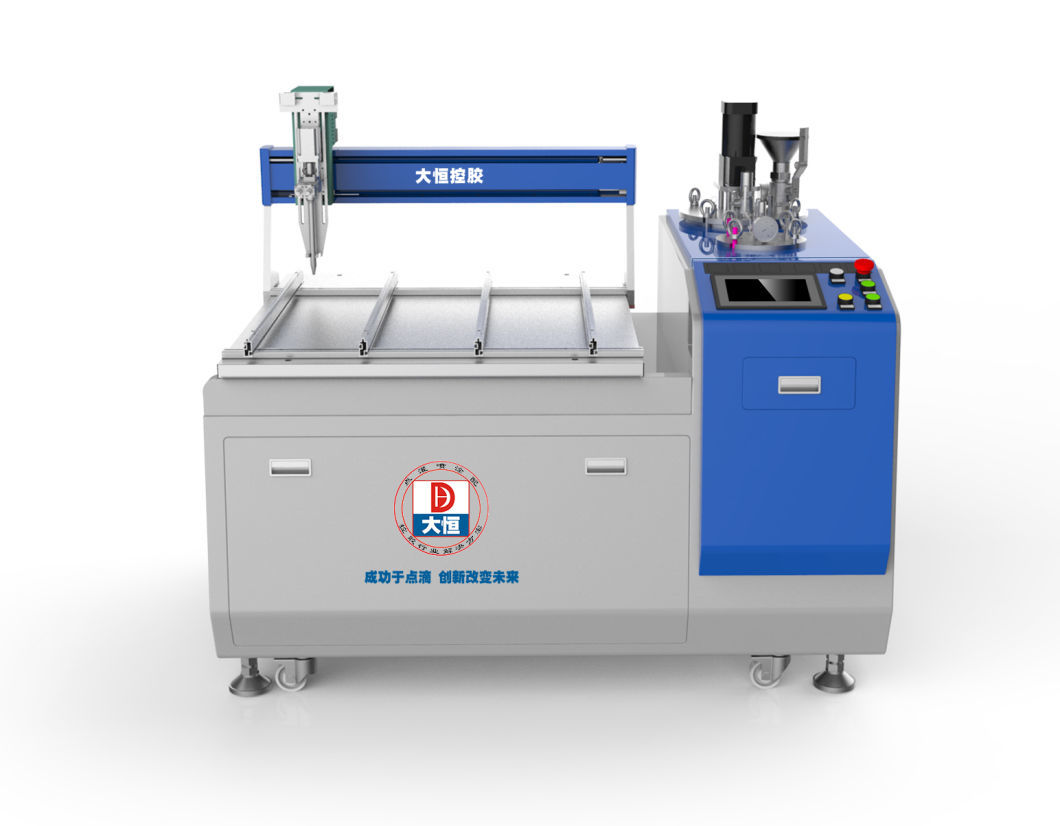

Polyurethanes epoxy resin potting machine ab part glue dispenser machine
1. Application :
3. Product parameter | Model | PGB-700 |
| Dimension | 1500*1100*1600mm |
| XYZ working area | 700*700*100mm |
| AB ratio | 100:100-100:10 adjustable |
| Movement Track | Dot/Line/Arc/Circle |
| Speed | 500mm/s (Movement speed) 1-12g/s (gluing out speed) |
| Accuracy | ±0.03mm (Repeatability) ±2% (potting) ±2% (mixing) |
| Program | 99pcs/more |
| Input pressure | 0.5MPa-0.7MPa |
| Viscosity | 50cps-30000cps (Glue can be heated to decrease viscosity |
| Operation Method | Automatic |
| Meter Pump | Gear pump/Screw pump/Double cylinder plunger pump |
| Flow Control | Digital Input |
| Programming method | Teaching programming |
| Automated control syste | PLC / touch screen (programming, modification, storage, etc.) |
| Glue control system | AB glue suction valve to achieve independent operation of AB glue |
| Mixed mode | Dynamic and static optional, instant mixing, easy to clean |
| Tank | Stainless steel(40L),(25L),(10L)optional |
| Power supply | 220V/50Hz/1200W ( The power consumption without heater) |
4. Features 1, Glue controlling system of metering, mixing and potting.
2, Accurate metering and even mixing helps to avoid the waste of glue.
3, Dispensing size and positioning keep machine work consistent and fast.
4, Good universality makes PGB-710 machine suitable for applications of LED, electric and others glue potting needed products.
5, Easy to program and operate.
6, Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing back-flow device and other functional device.
5. Working principle Liquid A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine, draining out liquids individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.
