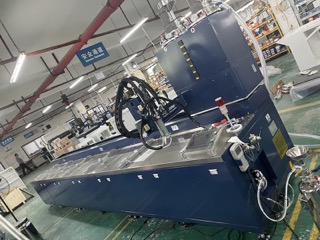

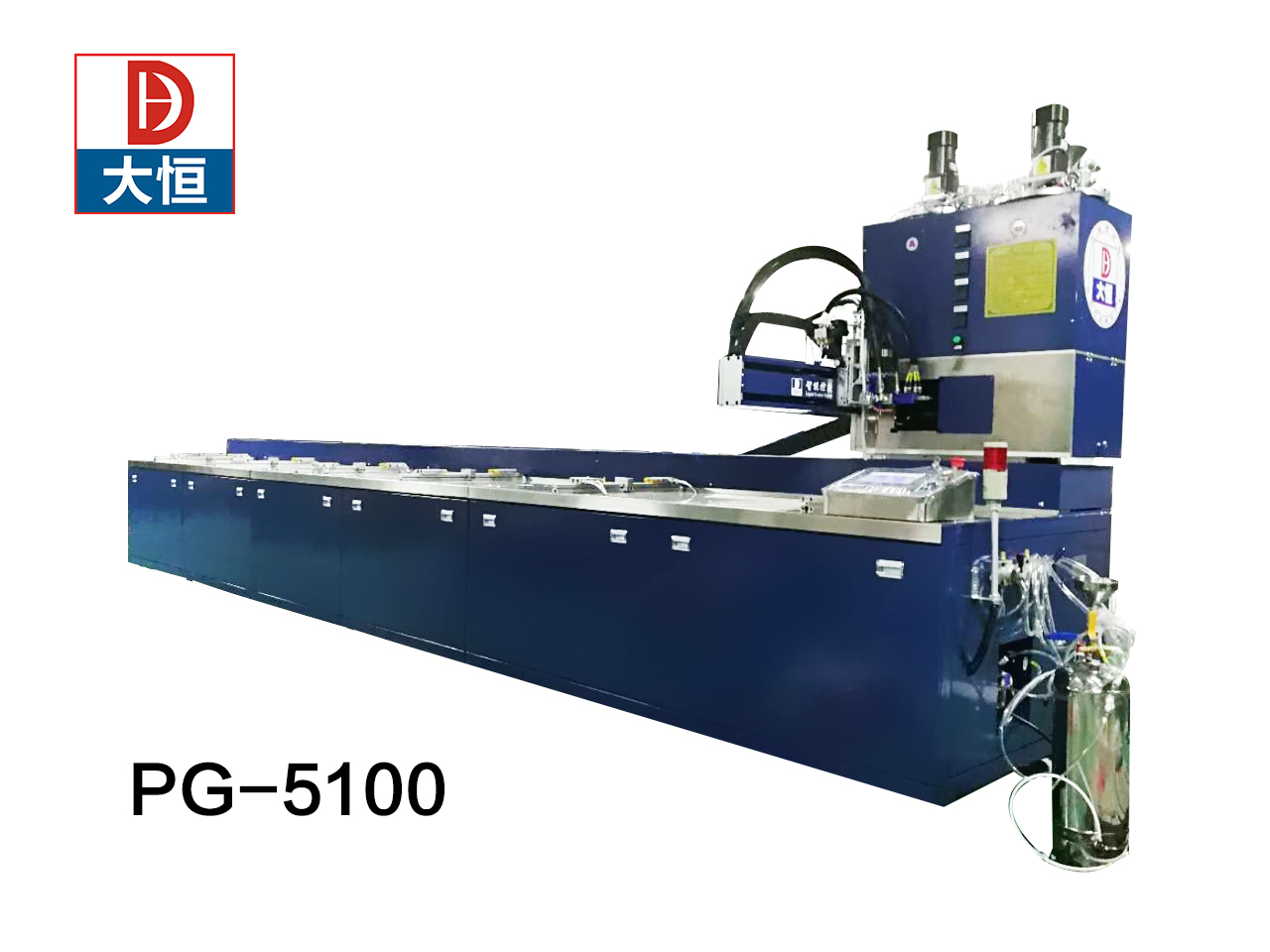

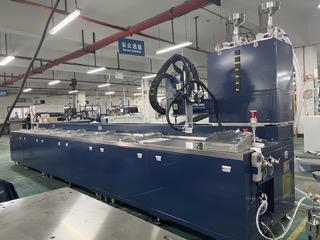

Gear Pump AB Glue Dispenser Machine for LED Strip Light Output Speed 5-66g/5s Adjustable

Place of Origin : Guangdong, China

Brand Name : D&H

Condition : New

Weight (KG) : 880

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Hot Product 2019

Warranty of core components : 1 Year

Core Components : PLC, Gearbox, Motor

Warranty : 1 Year

Applicable Industries : Manufacturing Plant

Showroom Location : Viet Nam, Philippines, Indonesia, Russia, Australia

keywords : AB glue dispenser machine for led strip light

AB Ratio : 1:1 - 10:1 adjustable

Mixing Method : Static / Dynamix optional

Metering Pump : Gear Pump

Output speed : 5-66g/5s adjustable

Precision : +/-1%

Tank capacity : Tank A 25L, Tank B 10L or customized

Movement track : Dot/Line/Array

Dimention : 6000*1150*2050mm

Packaging Details : Wooden box packing

Port : Huangpu

Supply Ability : 500 Set/Sets per Month

Price : $8,000.00 - $18,000.00/sets

Contact Now

Why Choose Us

AB glue dispenser machine for led strip light

Are you tired of manually mixing and dispensing two-component glue solutions? Do you want
to improve the accuracy and efficiency of your production process? Look no further than the AB meter mix machine or the two-component glue dispensing machine!

These machines offer a range of benefits for businesses in various industries. First and foremost, they allow for precise mixing of two-component adhesives, eliminating the need for manual mixing and reducing the risk of human error. This ensures consistent quality in your products and reduces waste, saving you time and money in the long run.

In addition, the machines are designed for easy operation and maintenance, with user-friendly interfaces and accessible components. This means that even operators without extensive technical knowledge can use and maintain the machines with ease.

Moreover, the machines come in a variety of sizes and configurations, making them suitable for various production volumes and
adhesive types. Whether you need a small machine for occasional use or a large machine for continuous production, there's an AB meter mix machine or two-component glue dispensing machine to fit your needs.

Finally, these machines can also improve workplace safety. By automating the mixing and dispensing process, they reduce the risk of operator exposure to potentially hazardous chemicals. This ensures a safer working environment for your employees and reduces the risk of workplace accidents.

In conclusion, the AB meter mix machine and the two-component glue dispensing machine are powerful tools for improving the
accuracy, efficiency, and safety of your production process. By investing in one of these machines, you can reduce waste, improve product quality, and streamline your operations. So why wait? Start exploring your options today and take your production process to the next level!

We Daheng Automation specialize in different types of potting and dispensing system. No matter what your resin application requirements look like: we can do most of them in our fully equipped lab. We can handle 1- and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. They can be from low- to high-viscosity, filled or unfilled and even high abrasive for thermal conductivity.

Potting and encapsulation is the process of embedding products & assemblies in a liquid resin (potting compounds) to protect them against rough environment conditions. Potting can be performed in atmosphere pressure or even under vacuum, if high voltage insulation and high temperature differences are needed. Encapsulation of parts will stop corrosion of metals and reduce damage caused by vibration and mechanical stress.

We offer automatic ,se-mi automatic fluid dispensing potting machine and the related production line and vacuuming systems 2 Part Silicone plyurethane epoxy potting dispensing machine AB Resins compound dosing dispensing potting system ,2K potting technology AB glue dispensing machine Epoxy dispensing machine Two-component dispensing machine，Dual-component dispensing machine Meter-mix dispensing machine，Resin dispensing machine Adhesive dispensing system，Dispensing robot with high precision Dispensing valve, AB Liquid dispenser , Automated dispensing equipment

Gear Pump AB Glue Dispenser Machine for LED Strip Light Output Speed 5-66g/5s Adjustable

Introduction ：

1. Working Mode: controlled by PLC module and MCGS touch screen.

2.High precision valve: high speed, glue off clean, no glue drawing, no dropping. 3. Core metering pump specially design for different material from low to high viscosities. 4. Mix glue A & B more evenly; no more or no less for agent B.

Working principle ：

Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.

Tank system technology：

1. Stainless panel vacuum pressure tank which can bear negative pressure of inner tank . 2. Tank with motor stirrer that prevent the glue from sediment and keep the potting material in constant temperature. 3 Tank with top/ high /low liquid sensors that ensure alarm warning when liquid higher or lower the setting level . 4 Tank with vacuum degas (degas time can be set through touch screen), so the material can be re-feeding through vacuum negative pressure . 5 Tank with pressure releasing ball valve ; the bottom of tank reserved back-flow connector and river closure ball valve.

6 Tank with heater which can preheat materials to assure good flowability . 7 Tank with artificial feeding mouth that can be added glue appropriately by hand . 8 Tank with silica-dryer which can prevent material especially PU from crystallization .

D&H Pump technology

1. Two cylinder plunger pumps work by durable motors. 2.The biggest flow volume :24g/s，Repetition accuracy:0.2g. 3.Also Suitable for high viscosity glue: 50cps~35000cps. 4. Suitable for big flow dispensing or slight flow dispensing. 5. Suitable for frequent start and stop dispensing. 6. Anti-wear, Anti-corrosion, super long life time.

Valve technology

Tech Data

ITEM	Parameter
Mixing ratio	1:1--10:1 adjustable
Working range	700700100mm
Displacement speed	250mm/s（speed）
Out-glue speed	1-12g/s per single pump
Accuracy	±2%（output volume）±2%（mixing）
tolerance	≤0.2mm
Flow control	Digital input
Program memory	99pcs-999pcs
Motion trail	Dot , line ,curve ,circle
Automatic controlling system	Touch screen (to achieve program programming, modification, storage and so on
Out-glue control system	AB glue back suction valve, achieve AB glue independent operation
Programmatically	Tech programming/or computer systems (Micro software Windows 7,Windows10 optional)
Mixing method	dynamic mixing
Power supply	220V/50Hz/1500W without heating
Air source	0.5-0.8Mpa
Viscosity range	50-20000cps
Outer dimension	1500L1200W1600H mm
A tank	10L 25L 40L stainless tank（optional）
B tank	10L 25L 40L stainless tank（optional）
Others	AB tank 、A pump、AB pipeline heating function

PLC Operation Controlling System

1 Dispensing volume is controlled by the speed of pump’s motors ; Glue speed adjustable within the speed range .

2 Machine with detecting function that detect the speed and running time of pumps to ensure the ratio reliability.

3 Adjustable gluing-out volume make sure glue A/B dispense out at the same time from glue valve to get better glue mixing effect .

4 Machine with gel resistance calculator , which prevent the mixture curing inside .

5 You can set single gluing-out and steady gluing-out function to meet up with your different process requirement .

6 Whole machine system and function is controlled by Panasonic PLC and MGCS touch screen .

7 Reserved PLC communication interface, which easy connecting with outside device .

8 Equipped with a safety lock to prevent staff from wrong operation .

Application

1.Potting&Encapsulation &Casting: electronics componnets , PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace parts.... 2.Dispensing&Dosing : LED strip , led lamp , led bulb , aluminum,led screen , display module ,medical parts,medical liquid filling .... 3.Bonding&doming : LCD screen ,LOCA bonding，ABS plastic,different types of stickers , badge , keychains , souvenirs ,arts , photo frame , and other arts graphics....

Applicable material

1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, UV materials and so on .

Certifications

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	150CM(L) * 110CM (W) * 170CM (D)
Weight	550KGS
Packaging Details	The normal package is wooden box(Size: LWH). The wooden box will be fumigated. We will use pe film for packing or pack it according to customers special request.

Our customer cases

Service Term

1、 Staff training Seller is responsible to provide machine’s training including installation, debugging, maintenance to assured customer can totally use the operation skills and well acknowledge maintenance of machine .

2、Maintenance Service 2.1Seller provide one year warranty period and support free maintenance service during warranty . Software upgrade service is provided for a long life time.

2.2 In case parts of the machine become broken within the warranty because of non-artificial factors, we send you part replacement free, buyer pay for the shipment. Double-liquid valve should be bought at its cost price.

2.3If the parts of the machine become broken past warranty , the parts replacement should be shouldered by buyer.
