Adjustable AB Ratio Resin Dome Dispenser Machine for Large-Scale Manufacturing

Name: Adjustable AB Ratio Resin Dome Dispenser Machine for LargeScale Manufacturing
Brand: Daheng
Price: 6 USD

Quality Adjustable AB Ratio Resin Dome Dispenser Machine for Large-Scale Manufacturing wholesale

Place of Origin : Guangdong, China

Brand Name : Daheng

Condition : New

Weight (KG) : 300

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : PLC

Core Components : PLC, Engine, Bearing, Gearbox, Gear, Pump

Warranty : 1Year

Applicable Industries : Manufacturing Plant

Showroom Location : Turkey, Italy, Viet Nam, Philippines, Russia, Thailand, Malaysia

AB Ratio : 1:1-10:1 adjustale

Mixing method : Static/Dynamic Optional

Metering Pump : Gear Pump or DH patented plunger Pump

Tank Capacity : Tank A25l, Tank B 10L

Suitable Material : Silicone, Epoxy, PU

Movement Track : Dot, line Arc, circle

Output speed : 1-150G/5s

Accuracy : +-1%

Control System : PLC+Touch Screen

Moving Bench : 200*200m to 1200*1200mm optional

Packaging Details : Wooding packing

Port : Huangpu

Supply Ability : 100 Piece/Pieces per Month Urgent order can overtime production

Price : $6,000.00 - $20,000.00/pieces

Contact Now

Machine Description

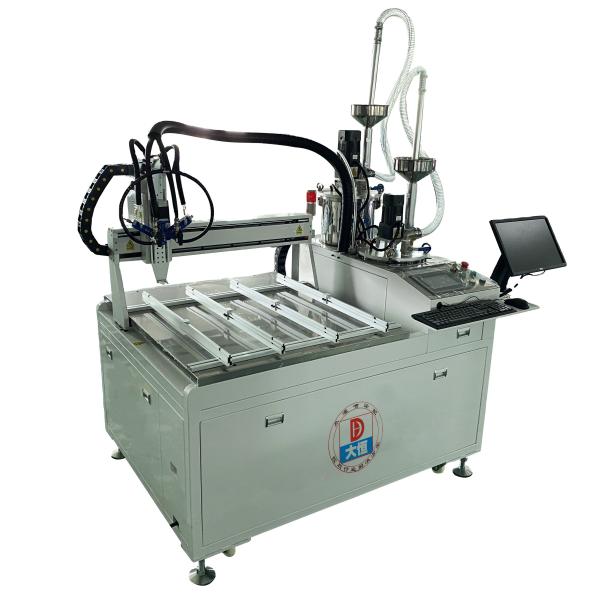

Resin dome dispenser machine

DOUBLE COMPONENT POTTING SYSTEM

We Daheng Automation specialize in different types of potting and dispensing system. No matter what your resin application requirements look like: we can do most of them in our fully equipped lab. We can handle 1- and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. They can be from low- to high-viscosity, filled or unfilled and even high abrasive for thermal conductivity.

We offer automatic and se-mi automatic fluid dispensing potting machine

Adjustable AB Ratio Resin Dome Dispenser Machine for Large-Scale Manufacturing

What is the difference between 2K AB adhesive materials manual potting machine and robot potting machine?

1. Vacuum material-feedingsystem or diaphragm pump feeding system
2. High precision pump metering system
3. Dynamic/Static mixing system
4. Three-axis motion system
5. Programming control system.

Features&Functions

Strong versatility / Multiple configuration / High production capacity / High precision
* Auto feeding :take use of vacuum pressure to feed materials into A&B tank separately.
* Tank Stirring :A and B tank configure with stirring motors and blades to prevent material sediment in the tank bottom .
* Heating : Tank , pipe , pumps are optional with heaters to assure the whole system can be heating from room temperature to 90°C
adjustable.
* Vacuum : A &B tank vacuum for degas the bubble inside material .
* Dynamic mixing : Configuring dynamic motor and mixer to mix A and B fluids evenly.

Application

1. Potting&Encapsulation &Casting:

electronics componnets , PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace...

2. Dispensing&Dosing:

LED strip , led lamp , led bulb , aluminum,led screen , display module ,medical parts,medical liquid filling ....

3. Bonding&doming:

LCD screen ,LOCA bonding，ABS plastic,different types of stickers , badge , keychains , souvenirs ,arts , photo frame , and other arts graphics....

Transformer , capacitance , power module , regulating plate ,protection module , generator , pressure package , soli relay ,fault indicator , Sensors , junction box , clutch , wave filter , water meter , boattery cover , rectifier and so on ...

Applicable Materials

1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials.

Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, UV materials and so on .
