±2% Metering Precision Filter and End Potting Machine Automation with 0-200mm/s Speed

Type : Gluing Machine

Applicable Industries : Manufacturing Plant

Showroom Location : Turkey, Italy, Viet Nam, Russia, Malaysia

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump

Condition : New

Application : Machinery & Hardware

Packaging Type : case

Packaging Material : Plastic, Wood

Automatic Grade : Automatic

Driven Type : Electric

Voltage : Customized

Place of Origin : Guangdong, China

Brand Name : D&H

Weight : 500 KG

Warranty : 1 Year

Key Selling Points : high precision

Key words : Filter and end potting machine automation

Function : AB epoxy mixing&stirring

speed : 0-200mm/s

metering precision : ±2%

Tank Capacity : 10L,25L,40L,60L,customized

Glue type : two component

heating : available

self-cleaning : available

Mixing ratio : 1:1--10:1 adjustable

working area : 200x200x100mm

Price : $13,000.00/pieces 1-1 pieces

Contact Now

Product Overview

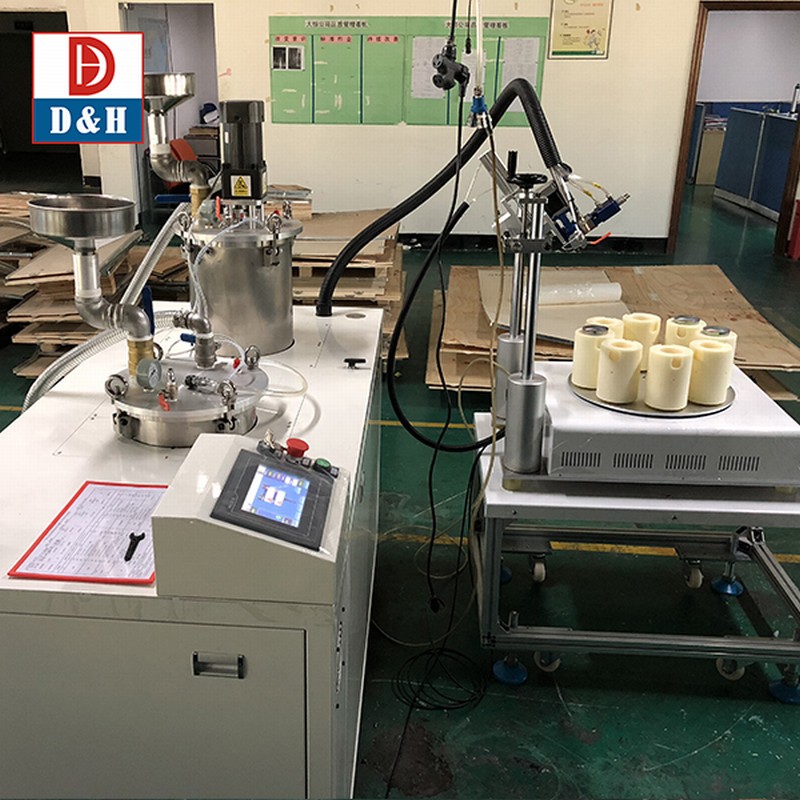

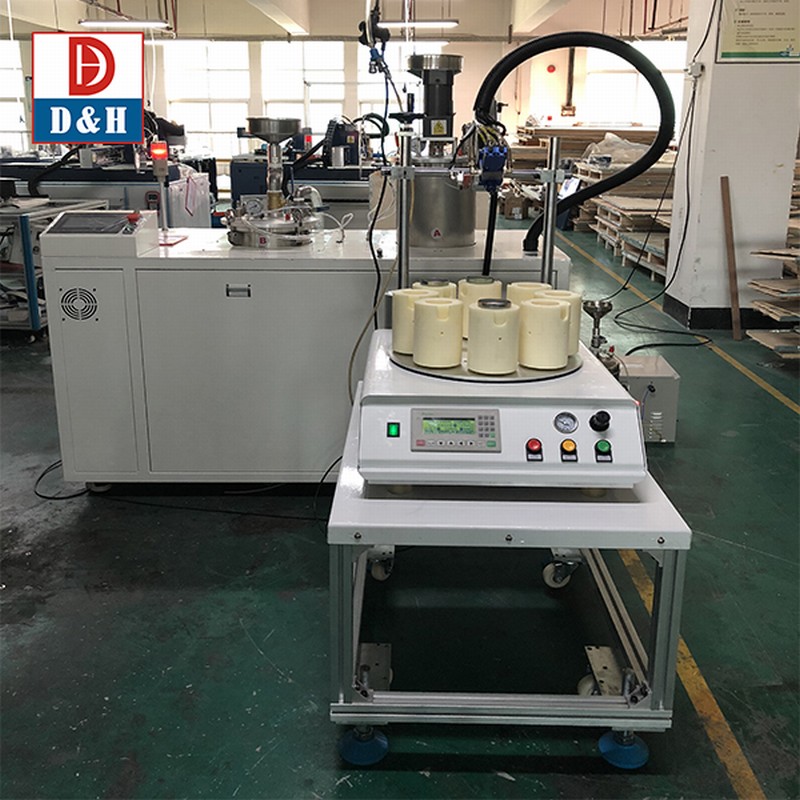

Filter and end potting machine automation

* Machine demand description
Electronics are increasingly present in our lives,these technologies all use a wide array of components – auto filter , round bulb , speaker , air filter , round light etc. – round products that need to be bonding covers or filters ... and so on . Our 2 component application equipment is the the good machine for bonding those round products, which apply different production processes required metering , mixing , dosing , dispensing and bonding with high accuracy and high efficiency .

* Metering working Principle
The machine will have two tanks for keeping Liquid A & B separately.
There are two sets of metering pumps inside the machine, draining out liquids individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data .

±2% Metering Precision Filter and End Potting Machine Automation with 0-200mm/s Speed

FEATURES AT A GLANCE


Potting sample

Sample test

PRODUCT CONFIGURATION

ITEM	Parameter
Mixing ratio	1:1--10:1 adjustable
Out-glue speed	1-12g/s
Accuracy	±2%（output volume）±2%（mixing）
tolerance	≤0.2mm
Flow control	Digital input
Program memory	99pcs
Automatic controlling system	Touch screen (to achieve program programming, modification, storage and so on
Out-glue control system	AB glue back suction valve, achieve AB glue independent operation
Programmatically	Tech programming With computer systems (Micro software Windows 7,Windows10 optional)
Mixing method	dynamic mixing
Power supply	220V/50Hz/1500W
Air source	0.5-0.8Mpa
Viscosity range	50-20000cps
A tank	25L stainless tank（optional）
B tank	10L stainless tank（optional）
Others	AB tank 、A pump、AB pipeline heating function

About Company

■ About D&H

D&H is a company who has its own core tech and provides professional glue controlling solutions in the industry.In 2006 we developed the patent-“double cylinder plunger pump”,the glue dispensing machine with such a pump type was launched into the market successfully.This patent design becomes the heart of a new generation of metering device.The new design leads the liquid controlling device into a direction of high filling,high precision ,high crystallization,high output speed and production line.
