Type : Gluing Machine
Applicable Industries : Manufacturing Plant
Showroom Location : Egypt, Viet Nam, India
Video outgoing-inspection : Provided
Machinery Test Report : Provided
Warranty of core components : 3 years
Core Components : PLC, Motor
Application : APPAREL, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type : Capsule, Cartons, case, Film, Pouch, Stand-up Pouch, Other
Packaging Material : Plastic
Automatic Grade : Automatic
Driven Type : Electric and Pneumatic
Voltage : 380V
Place of Origin : China
Brand Name : D&H
Dimension(L*W*H) : 6500/9800/16500*1300*1200mm
Weight : 2000 KG, 460kg
Warranty : 3 years
Key Selling Points : Long Service Life
Keywords : AB potting compound Electronic potting and casting machine
XYZ Working Area : 1200 X 1200 X 100mm
Mixing Ratio : From 1:1 to 10:1(Adjustable)
Pump : Daheng Patent Plunger Pump
Out-Gluing Rate : 5-66g/5s
Container Volume : A:25L B:10L
Control system : PLC
Tank Capacity : 10L ,25L , 40L optional
Speed : 0.5-24g/s
Marketing Type : New Product 2020
Packaging Details :
Wooden carton
Automatic glue mixing machine and potting machine
Port : Guangzhou, Shenzhen
Supply Ability : 600 Set/Sets per Month Glue Dispenser for led Strip
Price : $9,900.00/sets 1-1 sets
ITEM | Parameter |
Mixing ratio | 1:1--10:1 adjustable |
Working range | Can be customized |
Displacement speed | 250mm/s(speed) |
Out-glue speed | 1-12g/s per single pump |
Accuracy | ±2%(output volume)±2%(mixing) |
tolerance | ≤0.2mm |
Flow control | Digital input |
Program memory | 99pcs-999pcs |
Motion trail | Dot , line ,curve ,circle |
Automatic controlling system | Touch screen (to achieve program programming, modification, storage and so on |
Out-glue control system | AB glue back suction valve, achieve AB glue independent operation |
Programmatically | Tech programming/or computer systems (Micro software Windows 7,Windows10 optional) |
Mixing method | dynamic mixing |
Power supply | 220V/50Hz/1500W without heating |
Air source | 0.5-0.8Mpa |
Viscosity range | 50-20000cps |
A tank | 10L 25L 40L stainless tank(optional) |
B tank | 10L 25L 40L stainless tank(optional) |
Others | AB tank 、A pump、AB pipeline heating function |
ITEM | Parameter |
Mixing ratio | 1:1--10:1 adjustable |
Working range | Can be Customized |
Out-glue speed | 1-12g/s per single pump ; the output volume is decided by mixing ratio |
Accuracy | ±2%(output volume)±2%(mixing) |
tolerance | ≤0.2mm |
Flow control | Digital input |
Program memory | 20pcs |
Automatic controlling system | Touch screen (to achieve program programming, modification, storage and so on |
Out-glue control system | AB glue back suction valve, achieve AB glue independent operation |
Mixing method | dynamic mixing |
Power supply | 220V/50Hz/1500W without heating |
Air source | 0.5-0.8Mpa |
Viscosity range | 50-20000cps |
A tank | 10L 25L 40L stainless tank(optional) |
B tank | 10L 25L 40L stainless tank(optional) |
Others | AB tank 、A pump、AB pipeline heating function |
![]() |

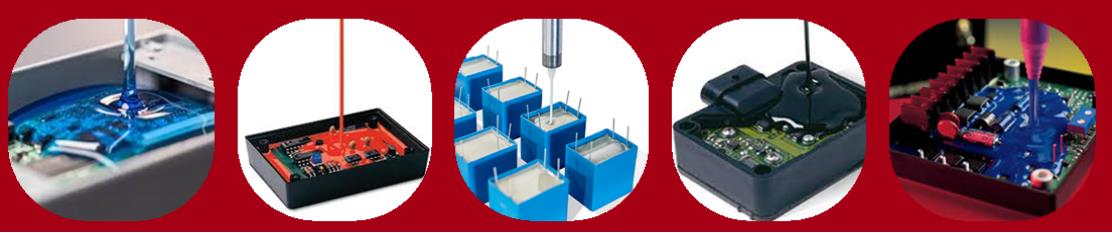

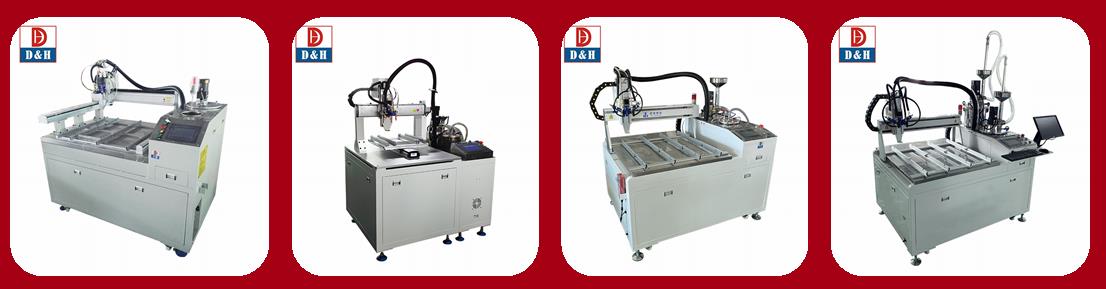

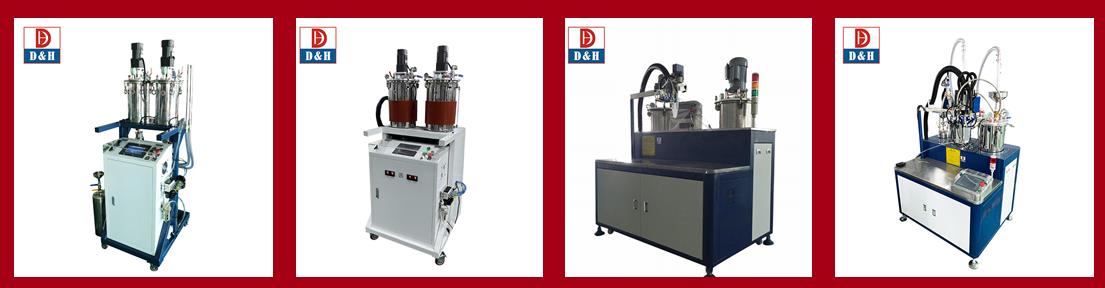

Chemical Container Volume A 25L B 10L Automatic AB Potting Compound Dispensing Machine Images |
