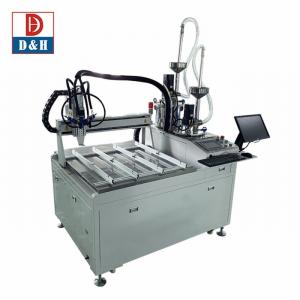

Automatic AB Two Parts PU Potting Machine for Badge Doming Resin in Case Packaging

Type : Gluing Machine

Applicable Industries : Manufacturing Plant

Showroom Location : Turkey, Italy, Viet Nam, Russia, Malaysia

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump

Condition : New

Application : Machinery & Hardware

Packaging Type : case

Packaging Material : Plastic, Wood

Automatic Grade : Automatic

Driven Type : Electric

Voltage : Customized

Place of Origin : Guangdong, China

Brand Name : D&H

Weight : 500 KG

Warranty : 1 Year

Key Selling Points : high precision

Product name : ab glue dispenser badge doming machine for domes resin

Function : AB epoxy mixing&stirring

speed : 0-200mm/s

metering precision : ±2%

Tank Capacity : 10L,25L,40L,60L,customized

Glue type : two component

heating : available

self-cleaning : available

Mixing ratio : 1:1--10:1 adjustable

working area : 200x200x100mm

Marketing Type : Ordinary Product

Packaging Details : Standard export poly-wood case

Port : Guangzhou

Supply Ability : 50 Piece/Pieces per Month MOQ=1PCS

Price : $11,900.00/pieces 1-1 pieces

Contact Now

Product Overview

automatic AB two parts pu potting Machine ab glue dispenser badge doming machine for domes resin

Machine introduction :

Our epoxy doming dispensing machine can help the manufacturer to produce different types of stickers , badge , key chains , arts , photo frame , and other arts which need to dome .

Daheng doming dispensing machine is used to bi-component epoxy , micro-injection , coating , spraying epoxy resin on the surface of the products . The machine is applied double vision location system , and replaces transitional manual injection to dispense different ratio epoxies .

Machine description and working principle
Automatic glue mixing machine is mainly used for a two-component glue( Epoxy/ Silicone/PU,etc adhesive), automatic metering and mixing the ratio of glue. The glue are stored in two barrels separately, according the glue weight ratio and volume demand automatic metering by two sets of precision pumps, supply to a mixing device fully mixing, and then potting/dispensing the desired products.

FEATURES AT A GLANCE

Automatic AB Two Parts PU Potting Machine for Badge Doming Resin in Case Packaging

Front elevation

Down elevation

Side elevation

Requirements& application

Doming technology normally is used for advertising industry , automative industry , boards production , souvenirs products and so on . The doming requires unique characteristics like transparent , strong , non-yellowing in long time , non-toxic and so on .

Application for different stickers , badge , keychains , arts , photo frame , fridge magnet, lables , fashionable key chains ,badge ，boards ， and other crafts which need to dome process .

PRODUCT CONFIGURATION

ITEM	Parameter
Mixing ratio	1:1--10:1 adjustable
Working range	700700100mm
Displacement speed	200mm/s（speed）
Out-glue speed	1-12g/s
Accuracy	±2%（output volume）±2%（mixing）
tolerance	≤0.2mm
Flow control	Digital input
Program memory	99pcs
Motion trail	Dot , line ,curve ,circle
Automatic controlling system	Touch screen (to achieve program programming, modification, storage and so on
Out-glue control system	AB glue back suction valve, achieve AB glue independent operation
Programmatically	Tech programming With computer systems (Micro software Windows 7,Windows10 optional)
Mixing method	dynamic mixing
Power supply	220V/50Hz/1500W
Air source	0.5-0.8Mpa
Viscosity range	50-20000cps
Outer dimension	1500L1200W1600H mm
A tank	25L stainless tank（optional）
B tank	10L stainless tank（optional）
Others	AB tank 、A pump、AB pipeline heating function
