High Precision AB Part Epoxy Urethane RTV Silicone Glue Production Line Gluing Machine

Type : Gluing Machine

Applicable Industries : Manufacturing Plant

Showroom Location : Turkey, Italy, Viet Nam, Russia, Malaysia

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump

Condition : New

Application : Machinery & Hardware

Packaging Type : case

Packaging Material : Plastic, Wood

Automatic Grade : Automatic

Driven Type : Electric

Voltage : Customized

Place of Origin : Guangdong, China

Brand Name : D&H

Weight : 500 KG

Warranty : 1 Year

Key Selling Points : high precision

Product name : gluing machines

Function : AB epoxy mixing&stirring

speed : 0-200mm/s

metering precision : ±2%

Tank Capacity : 10L,25L,40L,60L,customized

Glue type : two component

heating : available

self-cleaning : available

Mixing ratio : 1:1--10:1 adjustable

working area : 700x700x100mm

Packaging Details : Standard export poly-wood case

Port : Guangzhou

Supply Ability : 50 Piece/Pieces per Month MOQ=1PCS

Price : $11,900.00/pieces 1-1 pieces

Contact Now

AB part epoxy urethane RTV silicone glue production line glue applicator machine gluing machines

Automatic AB potting dispensing machine is composed of Five parts:

1. Automatic material-feeding system
2. High precision pump metering system
3. Dynamic/Static mixing system
4. Three-axis motion system
5. Programming control system.

AB-component materials flows into the pump through the feeding system (AB tanks) separately by the self-suction force of the metering pump.

Features

1、Controlling system of metering, mixing and potting.
2、Accurated metering and even mixing helps to avoid the waste of material.
3、Dispensing volume and positioning keep machine work consistent and fast.
4、Good universality
5、Easy to program and operate.
6、Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing back-flow device andother functional device.

Strong versatility / Multiple configuration / High production capacity / High precision

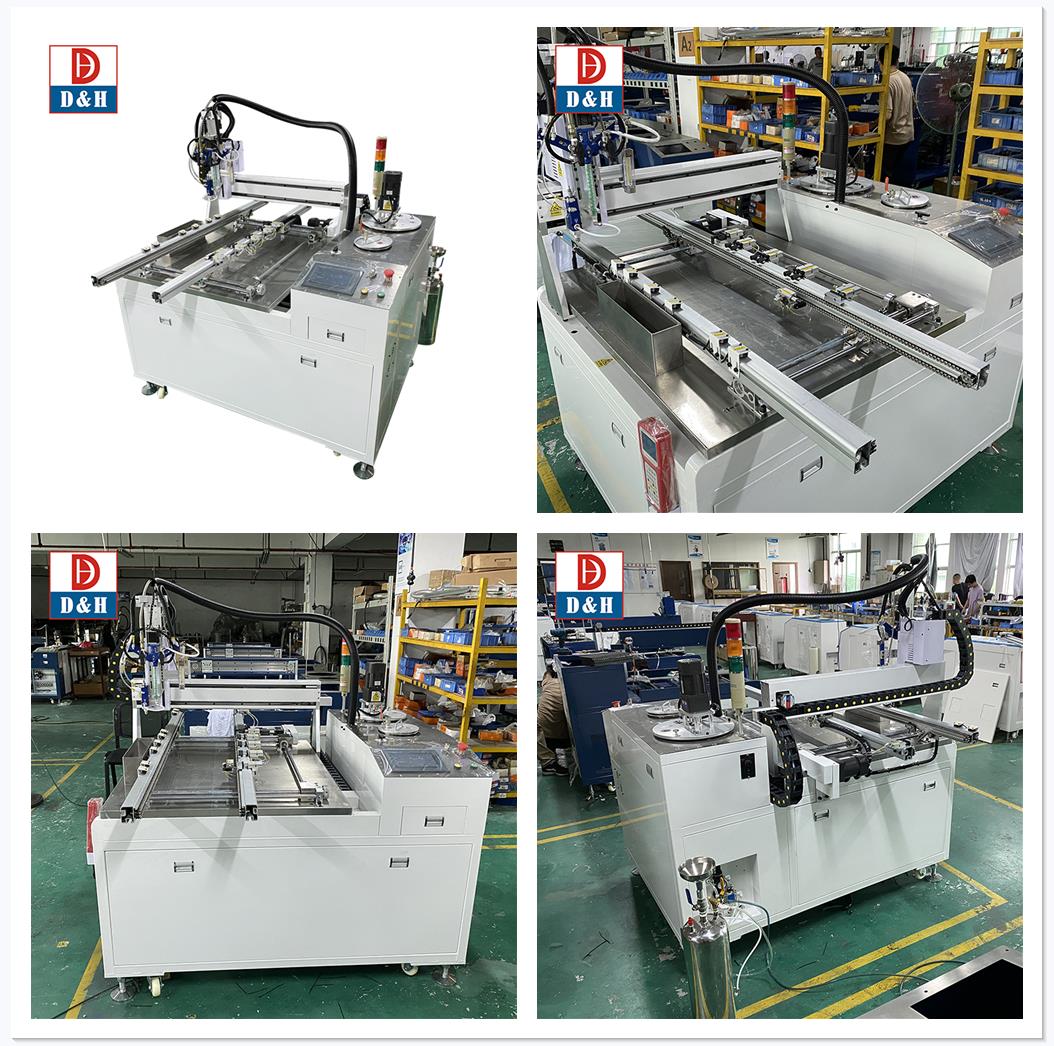

High Precision AB Part Epoxy Urethane RTV Silicone Glue Production Line Gluing Machine

AB ratio:	100:100-100:10 adjustable
Movement Track:	Dot/Line/Arc/Circle
Speed:	300mm/s (Movement speed) 1-12g/s (gluing out speed)
Accuracy:	±0.03mm (Repeatability) ±2% (potting) ±2% (mixing)
Program:	99pcs/more
Input pressure:	0.5MPa-0.7MPa
Viscosity:	50cps-30000cps (Glue can be heated to decrease viscosity)
Operation Method:	Manual/Automatic
Meter Pump:	Gear pump/Screw pump/Double cylinder plunger pump
Flow Control:	Digital Input
Programming method:	Teaching programming
Automated control system:	PLC / touch screen (programming, modification, storage, etc.)
Glue control system:	AB glue suction valve to achieve independent operation of AB glue
Mixed mode:	dynamic and static optional, instant mixing, easy to clean
Tank：	stainless steel(40L)、(25L)、（10L）optional
Power supply:	220V/50Hz/1200W ( The power consumption without heater)

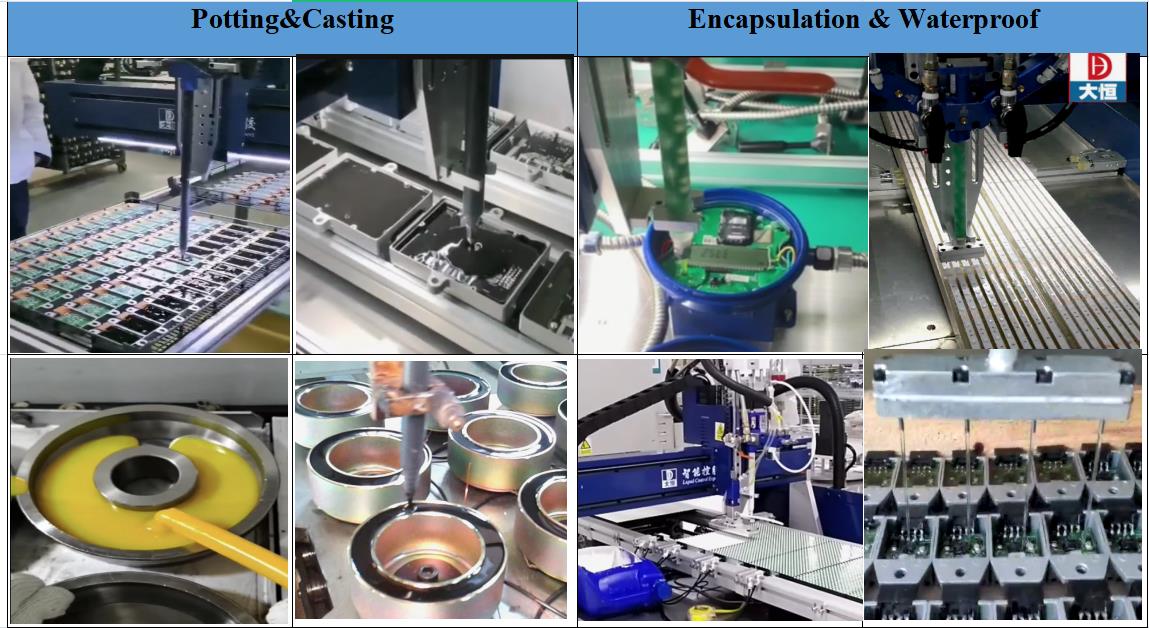

Application 1

1. Potting&Casting:Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, electronic ballast ,aviation parts, aerospace.
2. Encapsulation & waterproof :LED strip ,PCB Board , led lamp , led bulb , aluminum ...

Application 2

1. Bonding&dosing : LCD screen , medical parts，medical liquid ，ABS plastic
2. Doming&dispensing: Different types of stickers , badge , keychains , souvenirs ,arts , photo frame , and other arts graphics .

Suitable Materials:

2-part materials ,AB part compound materials , silicones , epoxies resin,PU, Ployster, polyurethane,UV materials，two component potting compound material ， 2K fuilds ， 2K liuquids material...

About Company

■ About D&H

D&H is a company who has its own core tech and provides professional glue controlling solutions in the industry.In 2006 we developed the patent-“double cylinder plunger pump”,the glue dispensing machine with such a pump type was launched into the market successfully.This patent design becomes the heart of a new generation of metering device.The new design leads the liquid controlling device into a direction of high filling,high precision ,high crystallization,high output speed and production line.

Certifications

■ QUALIFICATION CERTIFICATE

We have more than 30 national patents, and are at the industry pioneer level in the core technologies of glue potting and dispensing

Sales Network & Customers

Exhibition

Packing & Delivery

■ Standard Wooden Case with Vacuum Package

● By air, for sample and small package, international express like DHL, UPS, EMS...
● By sea, for large package and quantity;
● Other ways as customer requested.

FAQ

Q：Do you offer oversea service? A：We have overseas service center in some countries, we can support local service as per discussion. And we also can offer oversea service if customer required, engineer will offer face to face service.
Q：How dose your factory do regarding quality control? A：We assure 1 year warranty for the main part,also we offer spare part for back up. Please check with sales engineer in detail.
Q：What are your payment terms? A：Normally, 30% advance by T/T and balance paid off before delivery.
Q：Are you a factory or trading company ? A：We are a factory with SGS certified and more than 30 patents,and cooperate with different customers coverd about 50 countries for over 19 years.
