Wood Gluing Machine with Adjustable Mixing Ratio From 1 1 to 10 1 Fast and Precise

Name: Wood Gluing Machine with Adjustable Mixing Ratio From 1 1 to 10 1 Fast and Precise
Brand: Daheng
Price: 9 USD

Quality Wood Gluing Machine with Adjustable Mixing Ratio From 1 1 to 10 1 Fast and Precise wholesale

Type : Gluing Machine

Applicable Industries : Manufacturing Plant

Showroom Location : Turkey, Italy, Viet Nam, Indonesia, India, Mexico, Russia, Spain, Malaysia, Australia

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Core Components : PLC, Pump

Condition : New

Application : PU , EPOXY ,SILICONE

Packaging Type : Poly-wood case

Packaging Material : Poly-wood case

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 230V

Place of Origin : Guangdong, China

Brand Name : Daheng

Weight : 500 KG, 460kg

Warranty : 1 Year

Key Selling Points : High precision

Name : polyurethane glue pump machine

XYZ Working Area : 1200 X 1200 X 100mm

Mixing Ratio : From 1:1 to 10:1(Adjustable)

Pump : Daheng Patent Plunger Pump

Out-Gluing Rate : 5-66g/5s

Container Volume : A:25L B:10L

Control system : PLC

Tank Capacity : 10L ,25L , 40L optional

Speed : 0.5-24g/s

Packaging Details : Wooden carton
Automatic glue mixing machine and potting machine

Supply Ability : 600 Set/Sets per Month Glue Dispenser for led Strip

Price : $9,900.00/sets 1-1 sets

Contact Now

Wood Gluing Machine with Adjustable Mixing Ratio From 1 1 to 10 1 Fast and Precise

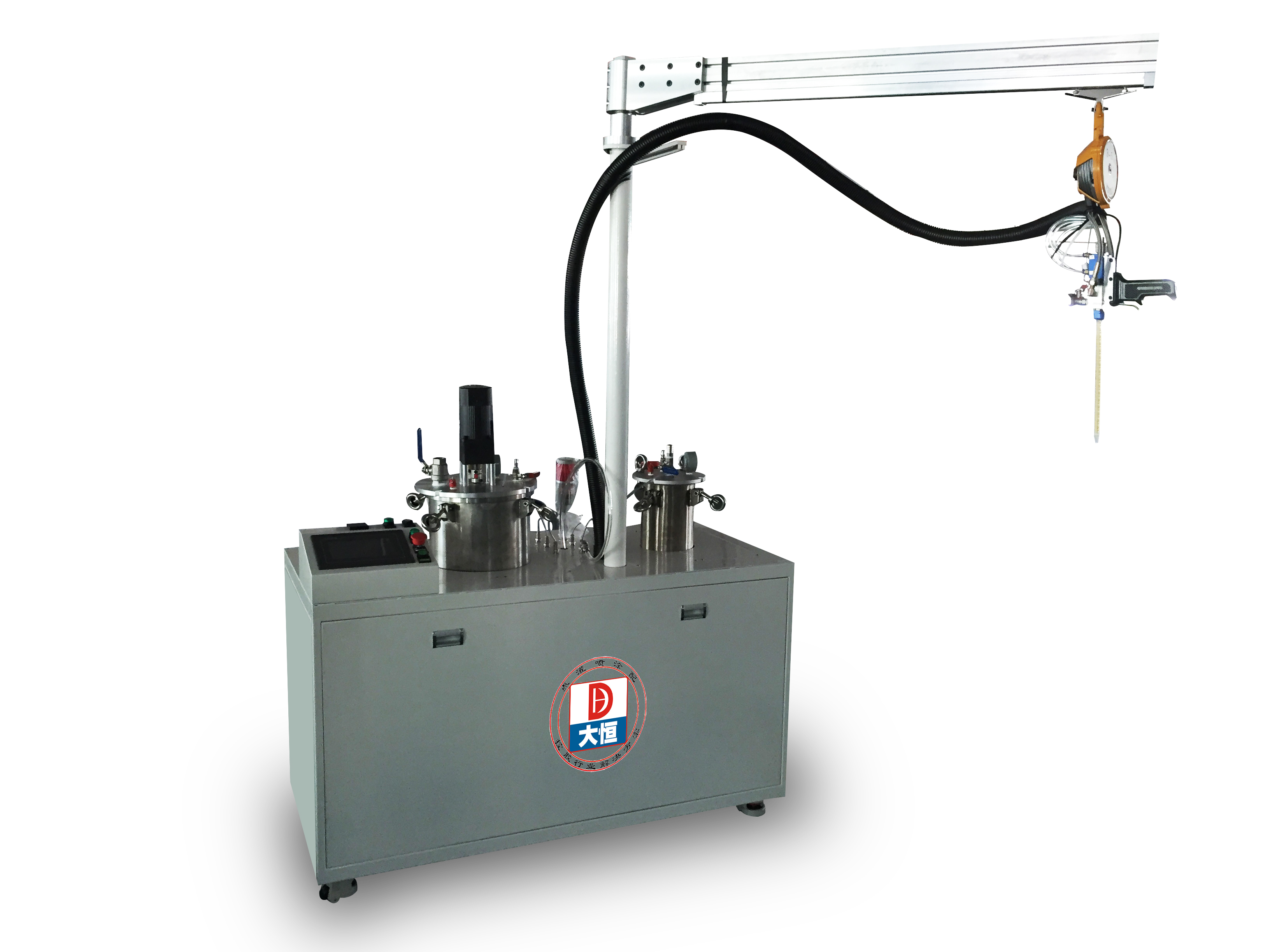

Polyurethane glue pump machine robot glue dispensing machine gluing machine for wood

Glue mixing machine
Brand: D&H
Model:PJL-1200
Features
1. Accurately ratiomixing, fully automatic mix AB glue.
2. Mixing evenly .
3. Simple adjustable andeasylabor operation
4. Universal , widely use for Capacitance, reversing radar, circuit board and so on .
5. Memory function , self-cleaning , vacuuming , and Liquid level warning
6. More functions can be customized to meet up customers' special requirements.

Working principle&Functions &configurations :

Liquid A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine, draining out liquids individually
from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.

Functions &configurations : automated feeding , heating , tank stirring , vacuum , dynamic/static mixing ,self-cleaning , self-discharging .

AB ratio: 100:100-100:10 adjustable
Movement Track: Dot/Line/Arc/Circle
Speed: 500mm/s (Movement speed) 1-12g/s (gluing out speed)
Accuracy: ±0.03mm (Repeatability) ±2% (potting) ±2% (mixing)
Program: 99pcs/more
Input pressure: 0.5MPa-0.7MPa
Viscosity: 50cps-30000cps (Glue can be heated to decrease viscosity)
Operation Method: Manual/Automatic
Meter Pump: Gear pump/Screw pump/Double cylinder plunger pump
Flow Control: Digital Input
Programming method: teaching programming
Automated control system: PLC / touch screen (programming, modification, storage, etc.)
Glue control system: AB glue suction valve to achieve independent operation of AB glue
Mixed mode: dynamic and static optional, instant mixing, easy to clean
Tank：stainless steel(40L)、(25L)、（10L）optional
Power supply: 220V/50Hz/1200W ( The power consumption without heater)

Applications ：

Wooden desk bonding , wooden parts gluing , Wooden furniture boding , and other wooden materials bonding , potting , dosing , dispensing application .

Parameter

Adjustable ratio	1 ：1 ---10：1	Flow control	Digital input
Output speed	0.5g/s --24g/s base on ratio
Automatic control system	Touch screen/ trigger switch/third party signal	Parameter display	Pipe pressure , glue temperature and parameter can be transmitted to third party device through communication module
Viscosity	300cps~50000cps（reference value）	Mixed mode	Dynamic mixing (automatic detect function)
Operation mode	Manual/automatic	Ratio control	PLC/Daheng pumps
Glue tank	Stainless tank A（40L）and stainless tank B(25L）, No machine stop when material feeding	Vacuum defoamation（-0.1MPa），4L/s	Liquid level sensor (low liquid level /high liquid level and limit liquid level)
Mixing accuracy	≤±2%	Voltage	220V/50Hz/1500W
Input air pressure	0.4MPa—0.7MPa	Material	SPCC+Industrial aluminium+stainless +metal plate

About Company

■ About D&H

D&H is a company who has its own core tech and provides professional glue controlling solutions in the industry.In 2006 we developed the patent-“double cylinder plunger pump”,the glue dispensing machine with such a pump type was launched into the market successfully.This patent design becomes the heart of a new generation of metering device.The new design leads the liquid controlling device into a direction of high filling,high precision ,high crystallization,high output speed and production line.

Certifications

■ QUALIFICATION CERTIFICATE

We have more than 30 national patents, and are at the industry pioneer level in the core technologies of glue potting and dispensing

Sales Network & Customers

Exhibition

Packing & Delivery

■ Standard Wooden Case with Vacuum Package

● By air, for sample and small package, international express like DHL, UPS, EMS...
● By sea, for large package and quantity;
● Other ways as customer requested.

FAQ

Q：Do you offer oversea service? A：We have overseas service center in some countries, we can support local service as per discussion. And we also can offer oversea service if customer required, engineer will offer face to face service.
Q：How dose your factory do regarding quality control? A：We assure 1 year warranty for the main part,also we offer spare part for back up. Please check with sales engineer in detail.
Q：What are your payment terms? A：Normally, 30% advance by T/T and balance paid off before delivery.
Q：Are you a factory or trading company ? A：We are a factory with SGS certified and more than 30 patents,and cooperate with different customers coverd about 50 countries for over 19 years.
