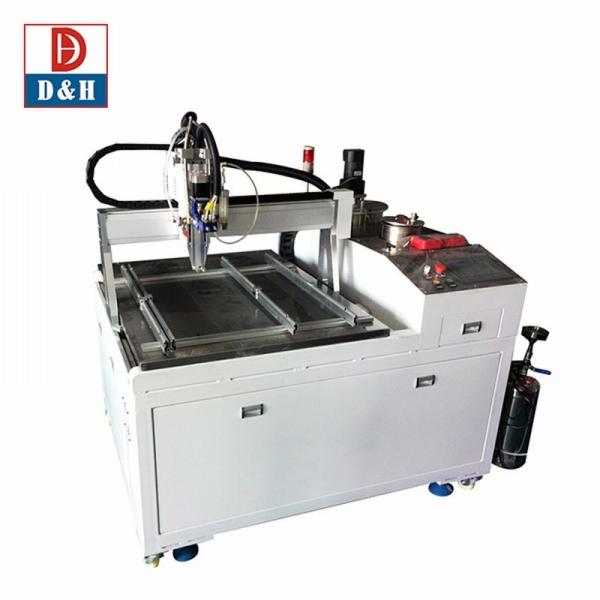

Speed Automatic Epoxy Dispenser The Ultimate Solution for Label Glue Pot Production

Type : Gluing Machine

Applicable Industries : Manufacturing Plant

Showroom Location : Turkey, Italy, Viet Nam, Russia, Malaysia

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump

Condition : New

Application : Machinery & Hardware

Packaging Type : case

Packaging Material : Plastic, Wood

Automatic Grade : Automatic

Driven Type : Electric

Voltage : Customized

Place of Origin : Guangdong, China

Brand Name : D&H

Weight : 500 KG

Warranty : 1 Year

Key Selling Points : high precision

Product name : a b epoxy dispenser

Function : AB epoxy mixing&stirring

speed : 0-200mm/s

metering precision : ±2%

Tank Capacity : 10L,25L,40L,60L,customized

Glue type : two component

heating : available

self-cleaning : available

Mixing ratio : 1:1--10:1 adjustable

Packaging Details : Standard export poly-wood case

Port : Guangzhou

Supply Ability : 50 Piece/Pieces per Month MOQ=1PCS

Price : $11,900.00/pieces 1-1 pieces

Contact Now

Product Overview

Label glue pot machine automatic dispensing robot epoxy filling machine

Machine description and working principle：
Automatic glue mixing machine is mainly used for a two-component glue( Epoxy/ Silicone/PU,etc adhesive), automatic metering and
mixing the ratio of glue. The glue are stored in two barrels separately, according the glue weight ratio and volume demand automatic metering by two sets of precision pumps, supply to a mixing device fully mixing, and then potting/dispensing the desired products.
Speed Automatic Epoxy Dispenser The Ultimate Solution for Label Glue Pot Production
Machine introduction :
Our epoxy doming dispensing machine can help the manufacturer to produce different types of stickers ,badge , key chains , arts ,
photo frame , and other arts which need to dome .
Daheng doming dispensing machine is used to bi-component epoxy , micro-injection , coating , spraying epoxy resin on the surface
of the products . The machine is applied double vision location system , and replaces transitional manual injection to dispense
different ratio epoxies .
Speed Automatic Epoxy Dispenser The Ultimate Solution for Label Glue Pot Production
PRODUCT CONFIGURATION
ITEM
Parameter
Mixing ratio
1:1--10:1 adjustable
Working range
700*700*100mm
Displacement speed
200mm/s（speed）
Out-glue speed
1-12g/s
Accuracy
±2%（output volume）±2%（mixing）
tolerance
≤0.2mm
Flow control
Digital input
Program memory
99pcs
Motion trail
Dot , line ,curve ,circle
Automatic controlling system
Touch screen (to achieve program programming, modification, storage and so on
Out-glue control system
AB glue back suction valve, achieve AB glue independent operation
Programmatically
Tech programming
With computer systems (Micro software Windows 7,Windows10 optional)
Mixing method
dynamic mixing
Power supply
220V/50Hz/1500W
Air source
0.5-0.8Mpa
Viscosity range
50-20000cps
Outer dimension
1500L*1200W*1600H mm
A tank
25L stainless tank（optional）
B tank
10L stainless tank（optional）
Others
AB tank 、A pump、AB pipeline heating function
SIMILAR PRODUCTS
Speed Automatic Epoxy Dispenser The Ultimate Solution for Label Glue Pot Production
Speed Automatic Epoxy Dispenser The Ultimate Solution for Label Glue Pot Production
Speed Automatic Epoxy Dispenser The Ultimate Solution for Label Glue Pot Production
* Mixing ratio ：
100:100-100:10 adjustable . Dynamic or static mixing mode are optional .

* Tank liquid level sensor :
Tank liquid level alarm helps remind glue level line in tank and supplement materials immediately.

* Vacuum filling:
The machine can automatically feeding material by using of the negative pressure of AB vacuum tank .

* Vacuum degas :
Vacuum defoaming can remove the bubbles contained in the material,and this degas system can satisfy different fluid mixing and potting .

* Heating：
Heating helps glue, especially PU and epoxy, to quickly reduce viscosity in cold weather, increase flow speed, and improve glue filling efficiency.

* Self-cleaning :
Automatic cleaning can quickly clean the mixing tube and prevent the mixture from solidifying

* Self-discharging
Automatic discharging can discharge the mixture that is about to be solidified in time to prevent the mixture from solidifying in the mixing tube
