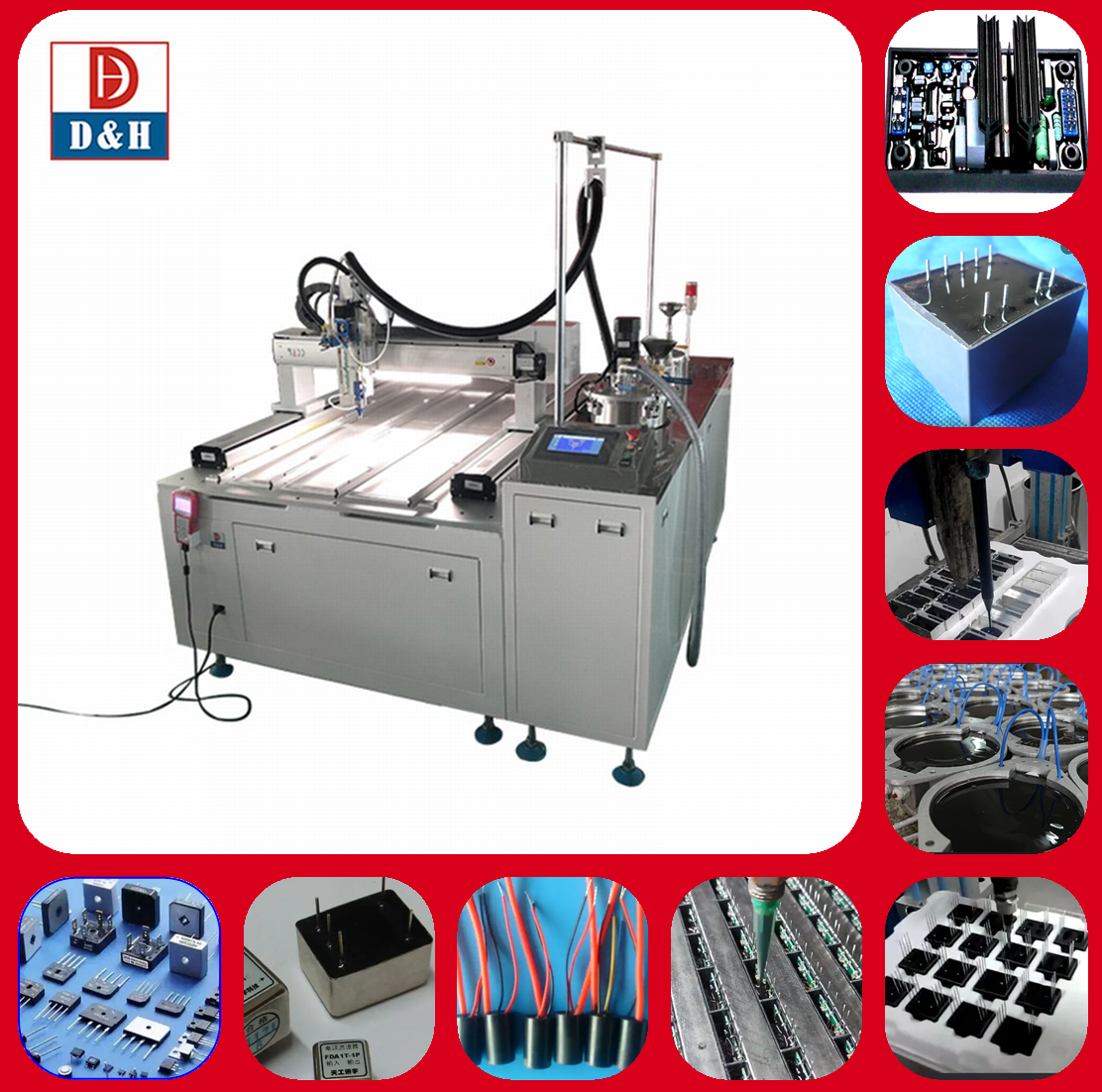

Electric Driven AB Glue Automatic Machine for 2 Component Epoxy Mixing and Dispensing

Place of Origin : Guangdong, China

Brand Name : D&H

Packaging Details : Standard export poly-wood case

Supply Ability : 50 Piece/Pieces per Month MOQ=1PCS

Price : $15,900.00/pieces 1-1 pieces

Type : Gluing Machine

Applicable Industries : Manufacturing Plant

Showroom Location : Turkey, Italy, Viet Nam, Russia, Malaysia

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump

Condition : New

Application : Machinery & Hardware

Packaging Type : case

Packaging Material : Plastic, Wood

Automatic Grade : Automatic

Driven Type : Electric

Voltage : Customized

Weight : 500 KG

Warranty : 1 Year

Key Selling Points : high precision

Product name : 2K AB glue two component automatic glue mixing and dispensing machine

Function : AB epoxy mixing&stirring

speed : 0-200mm/s

metering precision : ±2%

Tank Capacity : 10L,25L,40L,60L,customized

Glue type : two component

heating : available

self-cleaning : available

Mixing ratio : 1:1--10:1 adjustable

working area : 200x200x100mm

Port : Guangzhou

Contact Now

Details Images

AB glue automatic machine two component epoxy ab glue machine 2K mixing and dispensing machine

Double component potting system

We Daheng Automation specialize in different types of potting and dispensing system. No matter what your resin application requirements look like: we can do most of them in our fully equipped lab. We can handle 1- and 2-component polyurethanes, epoxies,acrylics, silicones, temperature, humidity and UV curing materials. They can be from low- to high-viscosity, filled or unfilled and even high abrasive for thermal conductivity.

Potting and encapsulation is the process of embedding electronic components & assemblies in a liquid resin (potting compounds) to protect them against rough environment conditions. Potting can be performed in atmosphere pressure or even under vacuum, if high voltage insulation and high temperature differences are needed. Encapsulation of parts will stop corrosion of metals and reduce damage caused by vibration and mechanical stress.

Electric Driven AB Glue Automatic Machine for 2 Component Epoxy Mixing and Dispensing

AB potting machine is composed of Five Systems

1. Automatic material-feeding system
2. High precision pump metering system
3. Dynamic/Static mixing system
4. Three-axis motion system
5. Programming control system.

AB-component materials flows into the pump through the feeding system (AB tanks) separately by the self-suction force of the metering pump.

Features&Functions

Strong versatility / High production capacity / High precision

* Auto feeding :take use of vacuum pressure to feed materials into A&B tank separately.

* Tank Stirring :A and B tank configure with stirring motors and blades to prevent material sediment in the tank bottom .
* Heating : Tank , pipe , pumps are optional with heaters to assure the whole system can be heating from room temperature to 90°C adjustable.
* Vacuum : A &B tank vacuum for degas the bubble inside material .
* Dynamic mixing : Configuring dynamic motor and mixer to mix A and B fluids evenly.

Advantages:

1,Accurated metering and even mixing helps to avoid the waste of material.
2,Dispensing volume and positioning keep machine work consistent and fast.
3,Good universality
4,Easy to program and operate.
5,Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing back-flow device and other functional device.

Tech Data

ITEM	Parameter
Mixing ratio	1:1--10:1 adjustable
Working range	550650100mm
Displacement speed	250mm/s(speed)
Out-glue speed	1-24g/s(base on the glue ratio)
Accuracy	±2%(output volume)±2%(mixing)
tolerance	≤0.2mm
Flow control	Digital input
Program memory	99pcs
Motion trail	Dot , line ,curve ,circle
Automatic controlling system	Touch screen (to achieve program programming, modification, storage and so on
Out-glue control system	AB glue back suction valve, achieve AB glue independent operation
programmatically	Tech programming
Mixing method	dynamic mixing
Power supply	220V/50Hz/1500W
Air source	0.5-0.8Mpa
Viscosity range	50-20000cps
Outer dimension	1500L1200W1600H mm
A tank	25L stainless tank(optional)
B tank	10L stainless tank(optional)
Others	AB tank ,A pump,AB pipeline heating function

Application

Transformer , capacitance , power module , regulating plate ,protection module , generator , pressure
package , solid relay ,fault indicator , Sensors , junction box , clutch , wave filter , water meter , battery cover , rectifier and so on ...

Suitable material

1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials.
Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, dual-component compound material UV materials and so on .

Working Principle

Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.

About Company

■ About D&H

D&H is a company who has its own core tech and provides professional glue controlling solutions in the industry.In 2006 we developed the patent-“double cylinder plunger pump”,the glue dispensing machine with such a pump type was launched into the market successfully.This patent design becomes the heart of a new generation of metering device.The new design leads the liquid controlling device into a direction of high filling,high precision ,high crystallization,high output speed and production line.

Certifications

■ QUALIFICATION CERTIFICATE

We have more than 30 national patents, and are at the industry pioneer level in the core technologies of adhesive potting and dispensing .

Sales Network & Customers

Exhibition

Packing & Delivery

■ Standard Wooden Case with Vacuum Package

● By air, for sample and small package, international express like DHL, UPS, EMS...
● By sea, for large package and quantity;
● Other ways as customer requested.

FAQ

Q:Do you offer oversea service? A:We have overseas service center in some countries, we can support local service as per discussion. And we also can offer oversea service if customer required, engineer will offer face to face service.
Q:How dose your factory do regarding quality control? A:We assure 1 year warranty for the main part,also we offer spare part for back up. Please check with sales engineer in detail.
Q:What are your payment terms? A:Normally, 30% advance by T/T and balance paid off before delivery.
Q:Are you a factory or trading company ? A:We are a factory with SGS certified and more than 30 patents,and cooperate with different customers coverd about 50 countries for over 19 years.
