300ml Glue Cartridge Filling Machine Initial Payment and Provide After-sales Service

Model NO. : DH-F055

Automatic Grade : Automatic

Material Type : Paste

Filling Valve Head : Multi-Head

Feed Cylinder Structure : Multi-Room Feeding

Dosing Device : Capacity Cup

Filling Principle : Pressure

Packaging Container Lifting Structure : Pneumatic Lifting

Structure : Linear

Packaging : Bottle

Packaging Material : Plastic

Transport Package : Poly-Wood Case

Specification : 700x700x100

Trademark : Daheng

Origin : China

HS Code : 8424899990

Supply Ability : 1000/Year

After-sales Service : Provide

Warranty : 1 Year

Type : Volumetric Filling Machine

Samples : US$ 11900/Piece 1 Piece(Min.Order) |

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

: Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Contact Now

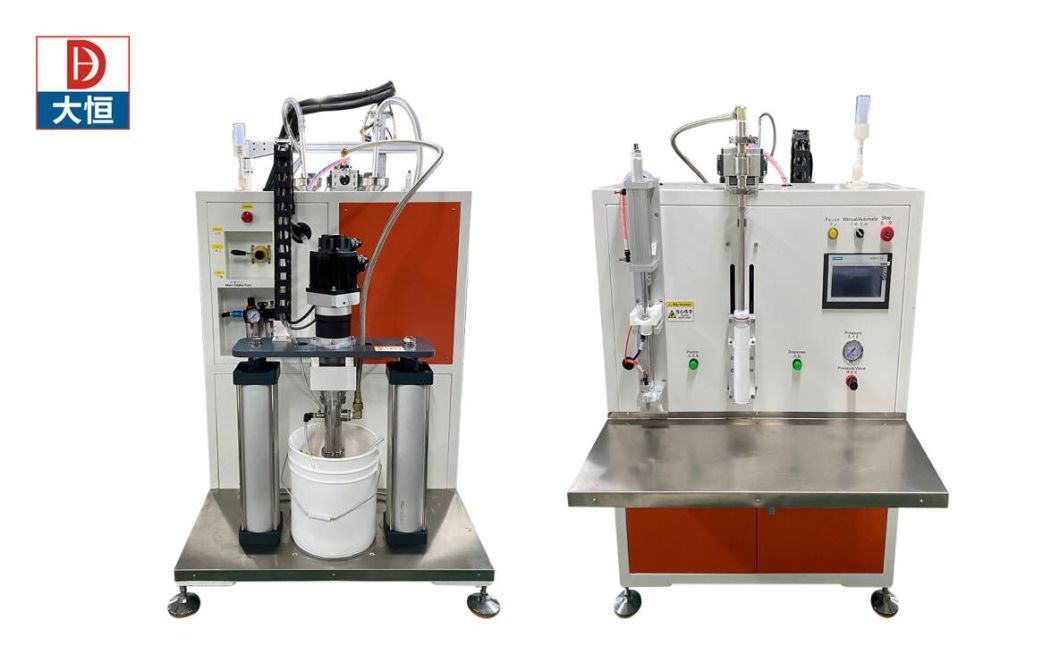

300ml glue catridge filling machine
300ml Glue Cartridge Filling Machine Initial Payment and Provide After-sales Service

(1) Equipped with Siemens PLC programmable controller and corresponding expansion module components
(2) Equipped with Siemens 7-inch capacitive touch screen control, which can set the output ratio, glue output, glue speed, control and display machine operation status, etc. on the touch screen.
(3) Equipped with high-speed precision solenoid valve to control and drive the opening and closing of the plastic head and other pneumatic components to operate normally.
(4) Equipped with a total power emergency stop switch, foot-operated electric switch operation control, manual/semi-automatic switch.
(5) Equipped with explosion-proof, corrosion-resistant and high-temperature resistant conveying pipelines.
( 6 ) Equipped with 2 sets of precision corrosion-resistant glue metering pumps for conveying and metering liquid glue or materials.
(7) Equipped with 2 sets of 20:1 reducer precision transmission to measure liquid glue or material.
(8) Equipped with 2 sets of 1.5KW servo motors and drivers, the proportion can be adjusted at will, the speed of glue dispensing can be controlled and the amount of glue injected each time can be set.
(9) Equipped with universal level caster paint rack, and the whole machine can be moved or fixed;

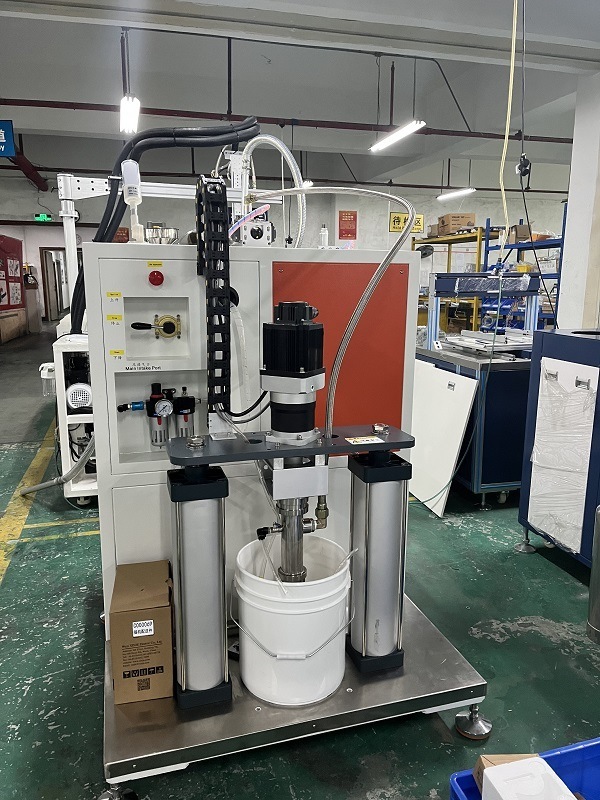

(10) Equipped with 2 sets of 5 gallon standard pressure plate, including exhaust valve and air outlet;
(11) Equipped with 2 sets of double-cylinder lifting frames, which can effectively scrape and feed;
(12) Equipped with 1 set of 50ML 1:1AB plastic cartridge filling fixture;
( 13 ) Equipped with 1 set of 50ML 1:1AB rubber barrel pressing jig;
(14) Equipped with the function of constant temperature heating of pipes.

Glue control system:

Equipped with large-flow double-acting back-suction type glue discharge head. Control A/B material to separate output and stop, the glue mixing head is equipped with multiple seals to produce vacuum suction effect to prevent material leakage. Ensure that no wire drawing (such as glue material viscosity) It is normal for the higher ones to have wire drawing. It is used for sub-packaging 50ML 1:1 to ensure the sub-packaging efficiency.

Random configuration
(1) A copy of the instruction manual in Chinese.
(2) One set of spare consumable seals.
(3) A set of Allen wrench for daily equipment maintenance tools

5. Remarks
(1) This machine configuration is suitable for dispensing liquid glue or materials. This machine cannot be packed with liquid glue or materials containing hard particles and abrasive powders, otherwise all the conditions caused by it are the responsibility of the user.
(2) After the machine is processed and assembled in our company, your company needs to provide the above 5-gallon barrel standard packaging sample A/B materials of 20L each to test the relevant machinery and equipment, and arrange relevant personnel to come to test and confirm. The remaining product samples and A/B materials will be randomly sent back to your company after the equipment test is completed.
(3) After the machine has passed the test of our company, it will be delivered, installed and debugged, and on-site operation training will be carried out. At the same time, it provides daily/future equipment maintenance guidelines. Provides a one-year warranty (wearing parts, man-made damage and damage caused by improper operation are not covered by the free warranty).

Tech Data

ITEM	Parameter
Mixing ratio	1:1--10:1 adjustable
Working range	Can be customized
Displacement speed	300mm/s(speed)
Out-glue speed	1-12g/s per single pump
Accuracy	±2%(output volume)±2%(mixing)
tolerance	≤0.2mm
Flow control	Digital input
Program memory	99pcs-999pcs
Motion trail	Dot , line ,curve ,circle
Automatic controlling system	Touch screen (to achieve program programming, modification, storage and so on
Out-glue control system	AB glue back suction valve, achieve AB glue independent operation
Programmatically	Tech programming/or computer systems (Micro software Windows 7,Windows10 optional)
Mixing method	dynamic mixing
Power supply	220V/50Hz/1500W without heating
Air source	0.5-0.8Mpa
Viscosity range	50-20000cps
A tank	18L 25L 200L stainless tank(optional)
B tank	18L 25L 200L stainless tank(optional)
Others	AB tank ,A pump,AB pipeline heating function

Application

Product Model: DH-F005

Working voltage: AC220V 50Hz 3500W
Packing ratio: 1:1 (adjustable)
Applicable Viscosity : 10000 ~ 300000 cps
Proportional accuracy: ±2%
Glue output accuracy: ±2%
Maximum object flow rate: 8 ~ 12 g/s. Platen size: 5 gallons (about 20L)
Working pressure: 0.4 ~ 0.7 MPa.s

Machine size: about 1300mm×1100mm×1700mm (for reference) Machine weight: about 250 KG

Service Term

1, Staff training
Seller is responsible to provide machine's training including installation, debugging, maintenance to assured customer can totally use the operation skills and well acknowledge maintenance of machine .

2,Maintenance Service
2.1Seller provide one year warranty period and support free maintenance service during warranty . Software upgrade service is provided for a long life time.

2.2 In case parts of the machine become broken within the warranty because of non-artificial factors, we send you part replacement free, buyer pay for the shipment. Double-liquid valve should be bought at its cost price.

2.3If the parts of the machine become broken past warranty , the parts replacement should be shouldered by buyer.

Product Tags:

automatic glue potting machine

automatic epoxy potting machine

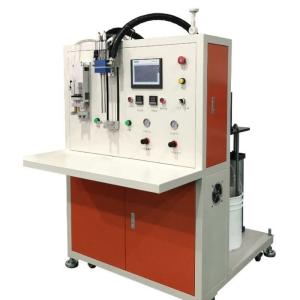

300ml Glue Cartridge Filling Machine Initial Payment and Provide After-sales Service Images
