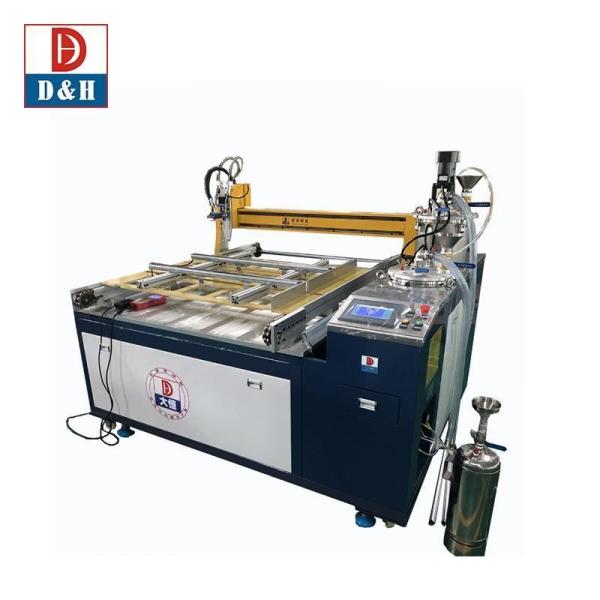

Automatic AB two parts pu potting Machine ab glue dispenser insulating meter mixing machine

Brand Name : D&H

Model Number : PGB-1200

Certification : CCC, FDA, RoHS, ISO, CE

Place of Origin : MADE IN CHINA

MOQ : 1 Unit

Price : USD 19000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000/Year

Delivery Time : 5-8 Working days

Packaging Details : 155X135X170 CM

Model NO. : PGB-1200

Installation : Vertical

Driven Type : Electric

Transport Package : Poly-Wood Case

Specification : 700x700x100

Trademark : Daheng

Origin : China

HS Code : 8424899990

After-sales Service : Provided

Precision : High Precision

Condition : New

Warranty : 12 Months

Automatic Grade : Automatic

Samples : 1 Piece(Min.Order) | Request

Customization : Available | Customized Request

Contact Now

ITEM	Parameter
Mixing ratio	1:1--10:1 adjustable
Working range	700700100mm
Displacement speed	250mm/s(speed)
Out-glue speed	1-12g/s per single pump
Accuracy	±2%(output volume)±2%(mixing)
tolerance	≤0.2mm
Flow control	Digital input
Program memory	99pcs-999pcs
Motion trail	Dot , line ,curve ,circle
Automatic controlling system	Touch screen (to achieve program programming, modification, storage and so on
Out-glue control system	AB glue back suction valve, achieve AB glue independent operation
Programmatically	Tech programming/or computer systems (Micro software Windows 7,Windows10 optional)
Mixing method	dynamic mixing
Power supply	220V/50Hz/1500W without heating
Air source	0.5-0.8Mpa
Viscosity range	50-20000cps
Outer dimension	1500L1200W1600H mm
A tank	10L 25L 40L stainless tank(optional)
B tank	10L 25L 40L stainless tank(optional)
Others	AB tank ,A pump,AB pipeline heating function

3 axis AB part potting machine high speed 2K dosing machine LED strip auto glue dispensing machine dispenser

The machine will have two tanks for keeping Liquid A & B separately.
There are two sets of metering pumps inside the machine, draining out liquids individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data .
Automatic glue mixing machine is mainly used for a two-component glue( Epoxy/ Silicone/PU,etc adhesive), automatic metering and mixing the ratio by two sets of high precision pumps, supply to a fully mixing design and then dispensing , dosing , dispensing the aimed products .

* Working principle :

Automatic AB two parts pu potting Machine ab glue dispenser insulating meter mixing machine

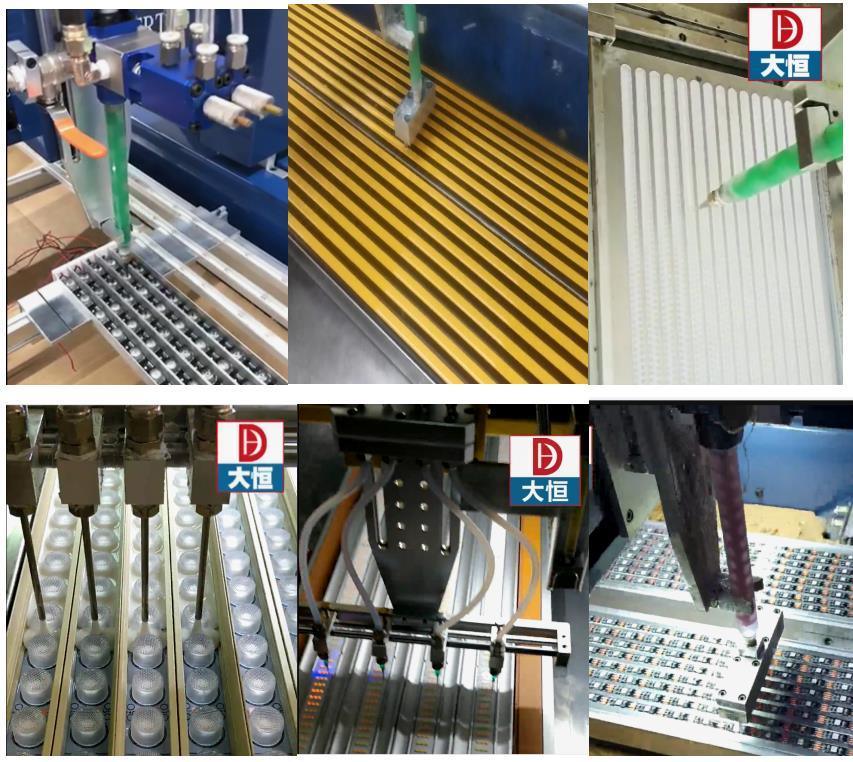

* Applications :
Industry: Led rigid light , led aluminium profile , Led screen , led display module , led panel , led sign board ,led ad , capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, electronic ballast,PCB boards, water pumps ,power supply and other electronic products and product or parts where want encapsulation &potting demanded.
Automatic AB two parts pu potting Machine ab glue dispenser insulating meter mixing machine

* Applied materials :

Epoxies , Urethane(PU) or Silicone .
Two components glue, AB glue, AB part glue, silicone, epoxy resin, polyurethane;
All kinds of two-component mixed glues with required ratio, such as epoxy resin AB glue, polyurethane, silica gel, PU glue,flocking glue, paint, etc.
Automatic AB two parts pu potting Machine ab glue dispenser insulating meter mixing machine

* Company profile :

Automatic AB two parts pu potting Machine ab glue dispenser insulating meter mixing machine

*Certificates & Core technology
Automatic AB two parts pu potting Machine ab glue dispenser insulating meter mixing machine

* Global activities
Automatic AB two parts pu potting Machine ab glue dispenser insulating meter mixing machine

*Packing and delivery
