2-Part Glue Dispensing System for Epoxy AB Component PU Silicones and Potting Machine

Name: 2Part Glue Dispensing System for Epoxy AB Component PU Silicones and Potting Machine
Brand: Daheng
Price: 6 USD

Quality 2-Part Glue Dispensing System for Epoxy AB Component PU Silicones and Potting Machine wholesale

Place of Origin : Guangdong, China

Brand Name : Daheng

Condition : New

Weight (KG) : 400

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : PLC

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Warranty : 1 Year

Applicable Industries : Manufacturing Plant

Showroom Location : Turkey, Italy, Viet Nam, Indonesia, Russia, Thailand, Malaysia

After-sales Service Provided : Online support

AB Ratio : 1:1-10:1 adjustale

Mixing method : Static/Dynamic Optional

Metering Pump : Gear Pump or DH patented plunger Pump

Tank Capacity : Tank A25l, Tank B 10L

Suitable Material : Silicone, Epoxy, PU

Movement Track : Dot, line Arc, circle

Output speed : 1-150G/5s

Accuracy : +-1%

Control System : PLC+Touch Screen

Price : $6,000.00 - $20,000.00/pieces

Contact Now

Machine specification：

Industrial glue dispenser 2-part glue dispensing system AB component PU Epoxies Silicones Potting Machine

Machine Demand Details ：
Daheng fluids dispensing technology can handle 1- and 2-component polyurethanes, epoxies, acrylics, silicones, temperature,
humidity and UV curing materials.
They can be from low-to high-viscosity, filled or unfilled and even high abrasive material by potting , dispensing , bonding ,
dosing ,dropping ,spraying ,pouring and so on .

Applicable Material：
1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. Two component
potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU,
Ployerster, Polyurethane, UV materials and so on .

2-Part Glue Dispensing System for Epoxy AB Component PU Silicones and Potting Machine

Introduction ：

1. Working Mode: controlled by PLC module and MCGS touch screen.

2.High precision valve: high speed, glue off clean, no glue drawing, no dropping. 3. Core metering pump specially design for different material from low to high viscosities. 4. Mix glue A & B more evenly; no more or no less for agent B.

Working principle ：

Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.

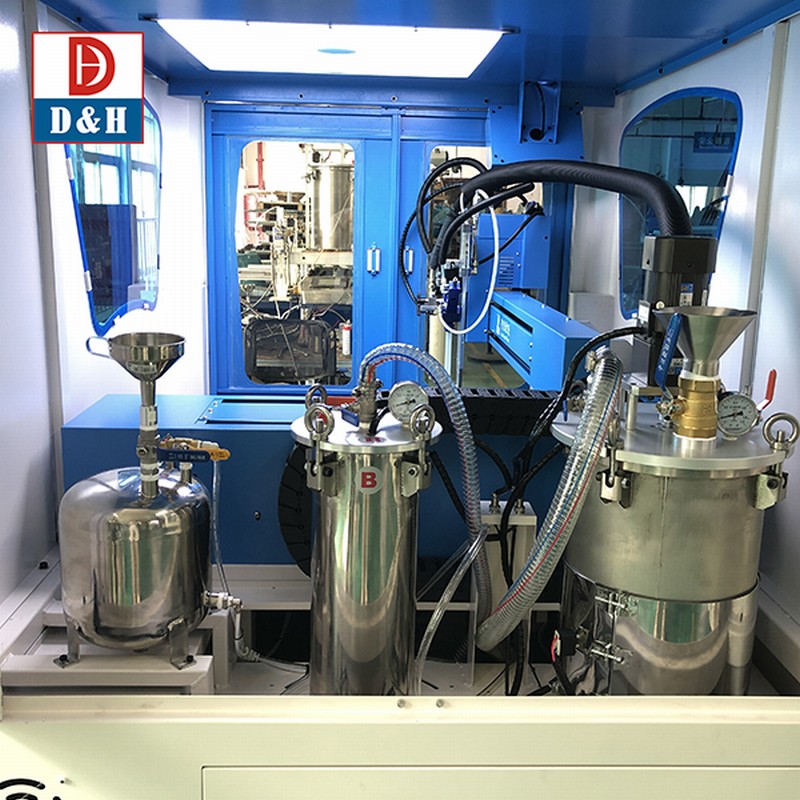

Tank system technology：

1. Stainless panel vacuum pressure tank which can bear negative pressure of inner tank . 2. Tank with motor stirrer that prevent the glue from sediment and keep the potting material in constant temperature. 3 Tank with top/ high /low liquid sensors that ensure alarm warning when liquid higher or lower the setting level . 4 Tank with vacuum degas (degas time can be set through touch screen), so the material can be re-feeding through vacuum negative pressure . 5 Tank with pressure releasing ball valve ; the bottom of tank reserved back-flow connector and river closure ball valve.

6 Tank with heater which can preheat materials to assure good flowability . 7 Tank with artificial feeding mouth that can be added glue appropriately by hand . 8 Tank with silica-dryer which can prevent material especially PU from crystallization .

D&H Pump technology

1. Two cylinder plunger pumps work by durable motors. 2.The biggest flow volume :24g/s，Repetition accuracy:0.2g. 3.Also Suitable for high viscosity glue: 50cps~35000cps. 4. Suitable for big flow dispensing or slight flow dispensing. 5. Suitable for frequent start and stop dispensing. 6. Anti-wear, Anti-corrosion, super long life time.

Valve technology

Tech Data

ITEM	Parameter
Mixing ratio	1:1--10:1 adjustable
Working range	700700100mm
Displacement speed	250mm/s（speed）
Out-glue speed	1-12g/s per single pump
Accuracy	±2%（output volume）±2%（mixing）
tolerance	≤0.2mm
Flow control	Digital input
Program memory	99pcs-999pcs
Motion trail	Dot , line ,curve ,circle
Automatic controlling system	Touch screen (to achieve program programming, modification, storage and so on
Out-glue control system	AB glue back suction valve, achieve AB glue independent operation
Programmatically	Tech programming/or computer systems (Micro software Windows 7,Windows10 optional)
Mixing method	dynamic mixing
Power supply	220V/50Hz/1500W without heating
Air source	0.5-0.8Mpa
Viscosity range	50-20000cps
Outer dimension	1500L1200W1600H mm
A tank	10L 25L 40L stainless tank（optional）
B tank	10L 25L 40L stainless tank（optional）
Others	AB tank 、A pump、AB pipeline heating function

PLC Operation Controlling System

1 Dispensing volume is controlled by the speed of pump’s motors ; Glue speed adjustable within the speed range .

2 Machine with detecting function that detect the speed and running time of pumps to ensure the ratio reliability.

3 Adjustable gluing-out volume make sure glue A/B dispense out at the same time from glue valve to get better glue mixing effect .

4 Machine with gel resistance calculator , which prevent the mixture curing inside .

5 You can set single gluing-out and steady gluing-out function to meet up with your different process requirement .

6 Whole machine system and function is controlled by Panasonic PLC and MGCS touch screen .

7 Reserved PLC communication interface, which easy connecting with outside device .

8 Equipped with a safety lock to prevent staff from wrong operation .

Application

Applicable material

1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, UV materials and so on .

Certifications

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	150CM(L) * 110CM (W) * 170CM (D)
Weight	550KGS
Packaging Details	The normal package is wooden box(Size: LWH). The wooden box will be fumigated. We will use pe film for packing or pack it according to customers special request.
