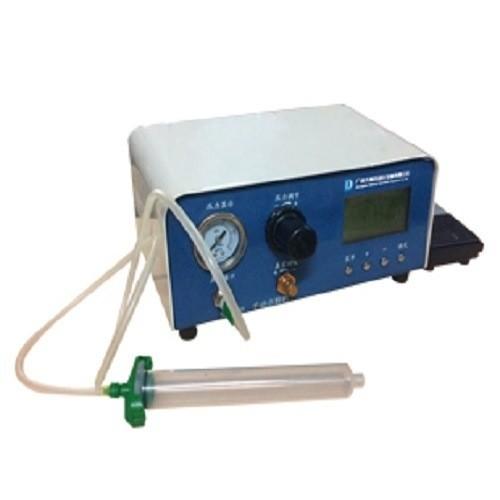

SD-200 Manual glue dispenser
1. Tech Data
Time Display: LCD Air pressure display: pressure gauge Output pressure: adjusted by rotary knob Suction pressure:micro-adjustable valve Time adjustment: button Operation mode: manual/automatic/circle work Gluing precision: +/- 0.01ml Dispensing frequency: ≥ 800 times/min Dispensing needle:1-6(customized) Moving mechanism:cantilever Speed of X/Y/Z axles: 0-200mm/s(adjustable) Repeat accuracy: ±0.02mm Gluing accuracy: ±0.01ml Dimension: L610 X W500 X H600mm Weight: 40 kg Voltage: AC220V 50Hz Working principle

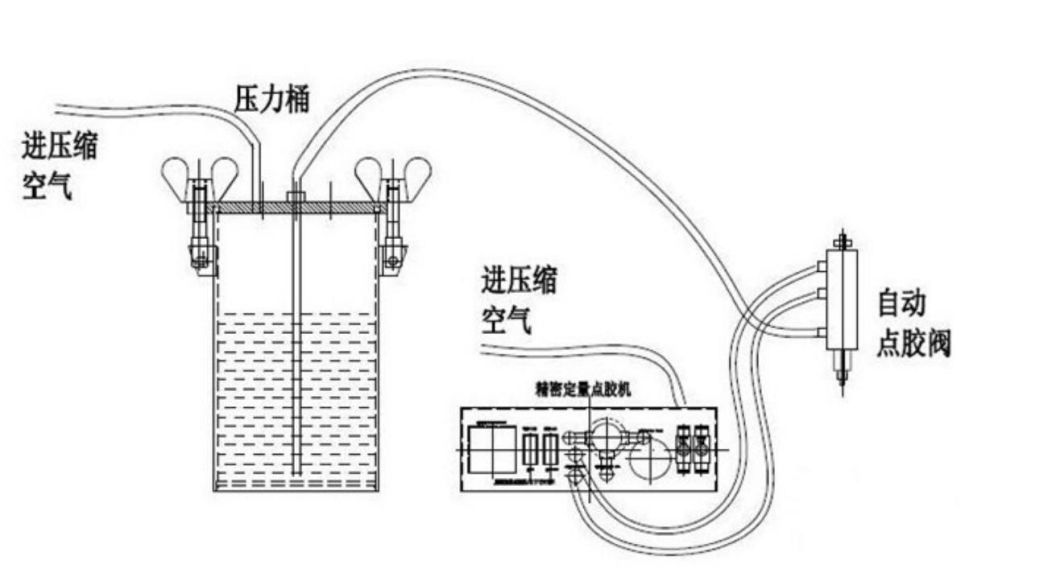

3. Glues Demanded:
solder paste, silver paste, UV glue, epoxy, intant glue, silicone and other liquid glue
| Model No.: | SD-200 |
| Time display | LCD |
| Air pressure display | Pressure gage |
| Input Aire pressure | adjusted by rotary knob |
| Time adjustment | button |
| Operation mode | manual/Auto |
| Gluing accuracy | +/-0.01ml |
| Repeatability | >=800 times/S |
| Air pressure | AC 220V.50HZ |
| Air source | 0.4-0.8MPa |
| | |
Version:0.9 StartHTML:0000000105 EndHTML:0000008109 StartFragment:0000000141 EndFragment:0000008069
Features.
1,Metal housing, more durable and not easy to break.
2,LCD screen display; higher precision
3,precision parts used.
4,vacuum back-draw function.
5,High precision back-draw valve, more stable.
6,More working mode: Auto mode, manual mode, and cycle mode are available.
Notes
1. Power cable must be safe into ground wire.
2. Once the glue is added into the syringe, keep it upright, otherwise the glue will run into the
machine inside.
3. No oil or wet moisture inside the air input!
4. You must turn slightly the back-draw valve; otherwise air bubble runs into the glue.
5. When the glue inside the syringe exceeds 4/5 of the capacity, please turn slightly the back-draw
valve, otherwise large glue quantity is sucked into the machine.
6. Never use chemical cleaner to wash the machine housing.
Eighth Installation:
1,Read carefully the user manual first.
2,Plug the glue dispensing converter into the joint of syringe.
3,Set the data wanted inside the machine.
4,Connect air.
5,Connect power
6,Open the switch
7,Install the needle
8,Add glue into the syringe.
9,Test machine and work.
