LED Flexible Strip Automatic Silicone Dispensing Machine for Advertising Companies

Product Categories

Guangzhou Zhengqi Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

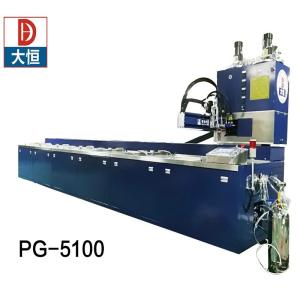

LED Flexible Strip Automatic Silicone Dispensing Machine for Advertising Companies

Condition : New

Machinery Capacity : 1000BPH

Applicable Industries : Building Material Shops, Manufacturing Plant, Printing Shops, Construction works , Energy & Mining, Other, Advertising Company

Showroom Location : Turkey, Italy, Germany, Viet Nam, Philippines, Indonesia, India, Russia, Spain, Thailand, Malaysia, Australia

Application : Chemical, Manufacturing plant, Automatic

Packaging Type : Bags, Polywood case

Packaging Material : Wood, Polywood case

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V or 380V customized

Place of Origin : Guangdong, China

Brand Name : D&H

Dimension(L*W*H) : 5900*1150*2000mm

Weight : 350 KG

Warranty : 13 months

Key Selling Points : High-accuracy

Filling Material : Liquid

Filling Accuracy : ±2%

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 13 months

Core Components : Pump, PLC

Accuracy : ±2%

Movement accuracy : ±0.2mm

Ratio : 1:1-10:1

Program memory : 999

Mixing mode : Dynamic /Static

Material : PU ,EPOXY ,SILICONE

Pump type : DH patent double cylinder plunger pump

XYZ working area : 5100x400x100mm

Type : Filling Machine

Packaging Details : According to the customer requirement

Port : Guangzhou

Supply Ability : 50 Piece/Pieces per Month MOQ=1PCS

Price : $14,000.00/pieces >=1 pieces

Contact Now

Why Choose Us

LED flexible strip automatic silicone dispensing machine silicone mixing machine glue filling machine

LED flexible strip automatic silicone dispensing machine gluing machine, silicone mixing machine glue filling machine
We Daheng Automation specialize in different types of potting and dispensing system. No matter what your resin application requirements look like: we can do most of them in our fully equipped lab. We can handle 1- and 2-component polyurethanes, epoxies, acrylics, silicons, temperature, humidity and UV curing materials. They can be from low- to high-viscosity, filled or unfilled and even high abrasive for thermal conductivity.

Potting is the process of embedding products & assemblies in a liquid resin (potting compounds) to protect them against rough environment conditions. Potting can be performed in atmosphere pressure or even under vacuum, if high voltage insulation and high temperature differences are needed.

We offer automatic ,se-mi automatic fluid dispensing potting machine and the related production line and vacuuming systems .

LED Flexible Strip Automatic Silicone Dispensing Machine for Advertising Companies

Introduction

1.Working Mode: controlled by PLC module and MCGS touch screen.

2. High precision valve: high speed, glue off clean, no glue drawing, no dropping.

3. Core metering pump specially design for different material from low to high viscosities.

4. Mix glue A & B more evenly; no more or no less for agent B.

Working principle:

Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.

Tank system technology：

1. Stainless panel vacuum pressure tank which can bear negative pressure of inner tank .

2. Tank with motor stirrer that prevent the glue from sediment and keep the potting material in constant temperature.

3. Tank with top/ high /low liquid sensors that ensure alarm warning when liquid higher or lower the setting level .

4. Tank with vacuum degas (degas time can be set through touch screen), so the material can be re-feeding through vacuum negative pressure .

5. Tank with pressure releasing ball valve ; the bottom of tank reserved back-flow connector and river closure ball valve. 6.Tank with heater which can preheat materials to assure good flowability .

7. Tank with artificial feeding mouth that can be added glue appropriately by hand .

8. Tank with silica-dryer which can prevent material especially PU from crystallization .

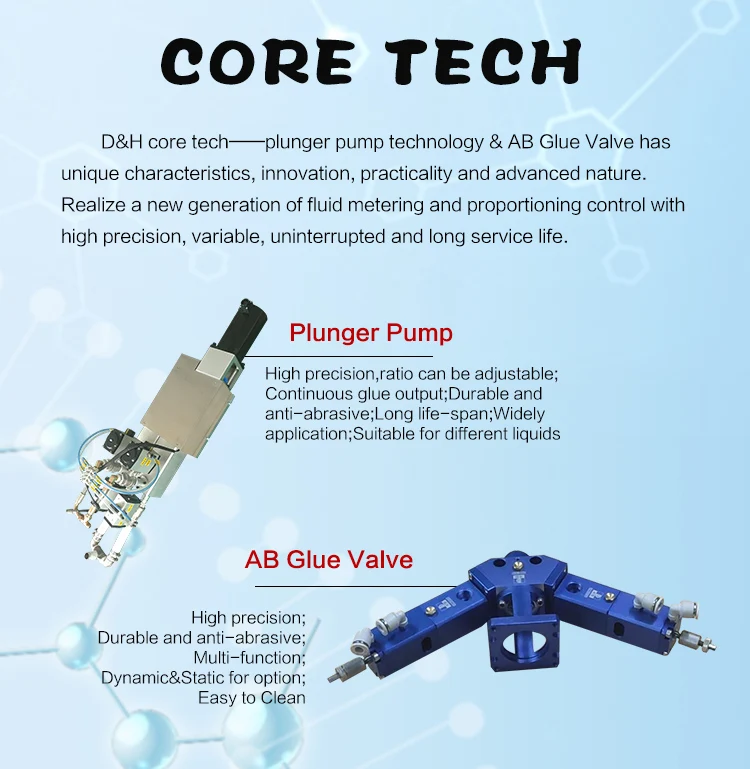

D&H Pump technology

1.Two cylinder plunger pumps work by durable motors.

2.The biggest flow volume :24g/s，Repetition accuracy:0.2g.

3.Also Suitable for high viscosity glue: 50cps~35000cps.

4. Suitable for big flow dispensing or slight flow dispensing.

5. Suitable for frequent start and stop dispensing.

6. Anti-wear, Anti-corrosion, super long life time.

Certifications

■ QUALIFICATION CERTIFICATE

We have more than 30 national patents, and are at the industry pioneer level in the core technologies of adhesive potting and dispensing .

Exhibition

Packing & Delivery

■ Standard Wooden Case with Vacuum Package

● By air, for sample and small package, international express like DHL, UPS, EMS...
● By sea, for large package and quantity;
● Other ways as customer requested.

FAQ

Q：Do you offer oversea service? A：We have overseas service center in some countries, we can support local service as per discussion. And we also can offer oversea service if customer required, engineer will offer face to face service.
Q：How dose your factory do regarding quality control? A：We assure 1 year warranty for the main part,also we offer spare part for back up. Please check with sales engineer in detail.
Q：What are your payment terms? A：Normally, 30% advance by T/T and balance paid off before delivery.
Q：Are you a factory or trading company ? A：We are a factory with SGS certified and more than 30 patents,and cooperate with different customers coverd about 50 countries for over 19 years.
