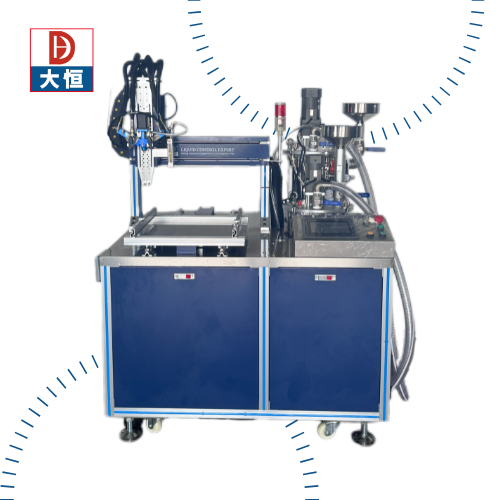

Self-Cleaning AB Glue Meter Mix Dispensing Machine for LED Driver Potting Equipment

Place of Origin : Guangdong, China

Brand Name : D&H

Packaging Details : Wooden Box Packing for Sea Shipment

Supply Ability : 1000 Piece/Pieces per Year

Price : $9,800.00/sets 1-1 sets

Model Number : PGB-200

Certification : CE

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 15 Work days

Applicable Industries : Manufacturing Plant

Packaging Type : Cartons

Packaging Material : Plastic

Automatic Grade : Automatic

Tank Capacity : 10L,25L,40L,60L,customized

Contact Now

Daheng Automation specializes in potting and dispensing systems for various resin applications, including 1- and 2-component polyurethanes, epoxies, silicones, and more. We provide solutions for potting and encapsulation to protect products from harsh environments, including vacuum and atmosphere pressure options. Our offerings include automatic and semi-automatic fluid dispensing machines, dual-component systems, and high-precision dispensing robots. We have the right equipment for adhesive, epoxy, or silicone applications to meet your needs.

D&H accepts a variety of customization, including size, number of tanks, temperature control, etc.

Please contact us for more information!

Self-Cleaning AB Glue Meter Mix Dispensing Machine for LED Driver Potting Equipment

Introduction :

1. Working Mode: controlled by PLC module and MCGS touchscreen

2. High precision valve: high speed, glue off clean, no glue drawing, no dropping.

3. Core metering pump specially designed for different materials from low to high viscosities.

4. Mix glue A & B more evenly; no more or no less for agent B.

Working principle :

Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting the ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.

Tank system technology:

1. Stainless panel vacuum pressure tank which can bear negative pressure of the inner tank.

2. Tank with a motor stirrer that prevents the glue from sediment and keeps the potting material at a constant temperature.

3. Tank with top/ high /low liquid sensors that ensure alarm warning when liquid is higher or lower than the setting level.

4. Tank with vacuum degas (degas time can be set through touch screen), so the material can be re-feeded through vacuum negative pressure.

5. Tank with pressure releasing ball valve; the bottom of tank reserved back-flow connector and river closure ball valve.

6. Tank with a heater that can preheat materials to assure good flowability. 7 Tank with artificial feeding mouth that can be added glue appropriately by hand. 8 Tank with silica-dryer which can prevent material, especially PU from crystallization.

D&H Pump technology

1. Two-cylinder plunger pumps work with durable motors. 2. The biggest flow volume:24g/s, Repetition accuracy:0.2g. 3. Also Suitable for high viscosity glue: 50cps~35000cps. 4. Suitable for big flow dispensing or slight flow dispensing. 5. Suitable for frequent start and stop dispensing. 6. Anti-wear, Anti-corrosion, super long lifetime.

Valve technology

1. Two cylinder plunger pumps work with durable motors. 2. The biggest flow volume:24g/s, Repetition accuracy:0.2g. 3. Also Suitable for high viscosity glue: 50cps~35000cps. 4. Suitable for big flow dispensing or slight flow dispensing. 5. Suitable for frequent start and stop dispensing. 6. Anti-wear, Anti-corrosion, super long lifetime.

Tech Data

ITEM Fully Automatic Two Component glue equipment Epoxy silicone Resin control system for the electronic industry	Parameter
Mixing ratio	1:1--10:1 adjustable
Working range	700700100mm
Displacement speed	250mm/s(speed)
Out-glue speed	1-12g/s per single pump
Accuracy	±2%(output volume)±2%(mixing)
tolerance	≤0.2mm
Flow control	Digital input
Program memory	99pcs-999pcs
Motion trail	Dot, line,curve, circle
Automatic controlling system	Touch screen (to achieve program programming, modification, storage, and so on
Out-glue control system	AB glue back suction valve, achieve AB glue independent operation
Programmatically	Tech programming/or computer systems (Micro software Windows 7, Windows10 optional)
Mixing method	dynamic mixing
Power supply	220V/50Hz/1500W without heating
Air source	0.5-0.8Mpa
Viscosity range	50-20000cps
Outer dimension	1500L1200W1600H mm
A tank	10L 25L 40L stainless tank(optional)
B tank	10L 25L 40L stainless tank(optional)
Others	AB tank ,A pump,AB pipeline heating function

PLC Operation Controlling System

Fully Automatic Two Component glue equipment Epoxy silicone Resin control system for the electronic industry

1 Dispensing volume is controlled by the speed of the pump’s motors; Glue speed is adjustable within the speed range.

2 Machine with detecting function that detects the speed and running time of pumps to ensure the ratio reliability.

3 Adjustable gluing-out volume make sure glue A/B dispenses out at the same time from the glue valve to get a better glue mixing effect.

4 Machine with gel resistance calculator, which prevents the mixture from curing inside.

5 You can set single gluing-out and steady gluing-out functions to meet up with your different process requirements.

6 The whole machine system and function is controlled by Panasonic PLC and MGCS touch screen.

7 Reserved PLC communication interface, which is easy to connect with outside devices.

8 Equipped with a safety lock to prevent staff from the wrong operation.

Application

1.Potting&Encapsulation&Casting: electronics components, PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, filter products, underwater parts, electronic ballast, aviation parts, aerospace parts...

2.Dispensing&Dosing: LED strip, LED lamp, LED bulb, aluminum, LED screen, display module, medical parts, medical liquid filling .... 3.Bonding&doming: LCD screen, LOCA bonding, ABS plastic, different types of stickers, badge, keychains, souvenirs, arts, photo frame, and other arts graphics....

Service Term

1, Staff training Seller is responsible for providing machine training including installation, debugging, and maintenance to ensure the customer can totally use the operation skills and well acknowledge the maintenance of the machine.

2,Maintenance Service 2.1Seller provides a year warranty period and supports free maintenance service during warranty. Software upgrade service is provided for a long lifetime.

2.2 In case parts of the machine become broken within the warranty because of non-artificial factors, we send you a part replacement free, buyer pays for the shipment. The double-liquid valve should be bought at its cost price.

2.3 If the parts of the machine become broken past warranty, the parts replacement should be shouldered by the buyer.
