Automatic Grade Automatic Meter Mix and Dispenser Machine for High Precision Mixing
Looking for efficient solutions in glue manufacturing and dispensing? Our advanced machines cater to a range of needs, including Epoxy Resin with Pump Dispenser, 2-Part Potting Compound Dosermachine, and Panel Bonding Dispenser, ideal for industries like electronics, automotive, and LED assembly. We specialize in systems for precise Glue Manufacturing Process, with options such as the 2k Adhesive Resin and Epoxy Smart Doser for accurate dispensing of 2-component adhesives.
Our Potting Material for PCB solutions ensure perfect protection for circuit boards, while the Back Type Glue Smart Dosing System optimizes glue application. For LED applications, our LED Glue Potting and Bonding System provides efficient potting and bonding solutions.
We also offer Glue Laminating Machine and 2-Component Epoxy Resin Measuring Machine, ensuring precise mixing and dispensing. Need automation? Our 2-Component Epoxy Automatic Dispensing Unit guarantees consistent results for your industrial needs.
Features & Benefits:
1, A system of metering, mixing, and potting.
2, Accurate metering and mixing help to avoid possible waste of glue.
3, Shot size and positioning are consistent, and fast.
4, Good universality makes PGB-700 suitable for applications of LED, electric, and other glue potting needed.
5, Easy to program and operate.
6, Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing backflow device, and other functional devices.
Application:

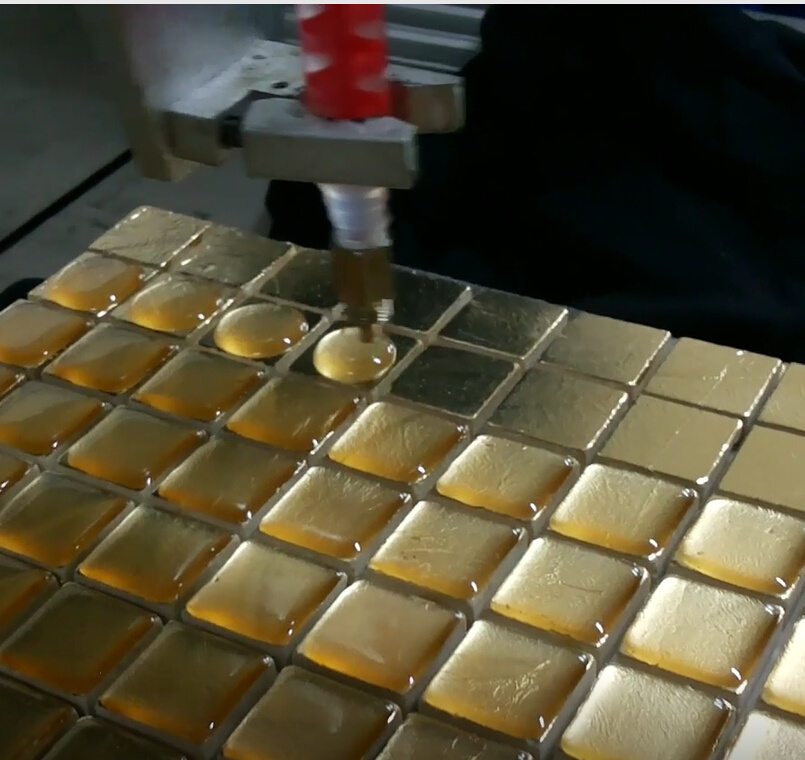

Industry: sticking ceramic tiles, wall stickers, decoration stickers, artworks, capacitors, power supplies, transformers, ignition coils, reverse sensors, circuit boards, electronic ballast, other electronic products, and LED products where glue potting is demanded.
Glue:
Epoxy, silica gel, AB glue, PU, and other glue that need matching
Optional Function:
1, evacuation
2, heating
3, Geared pump & plunger piston pump are available; Customers can choose to needs.
4, Control will be chosen to be added to the program to needs.

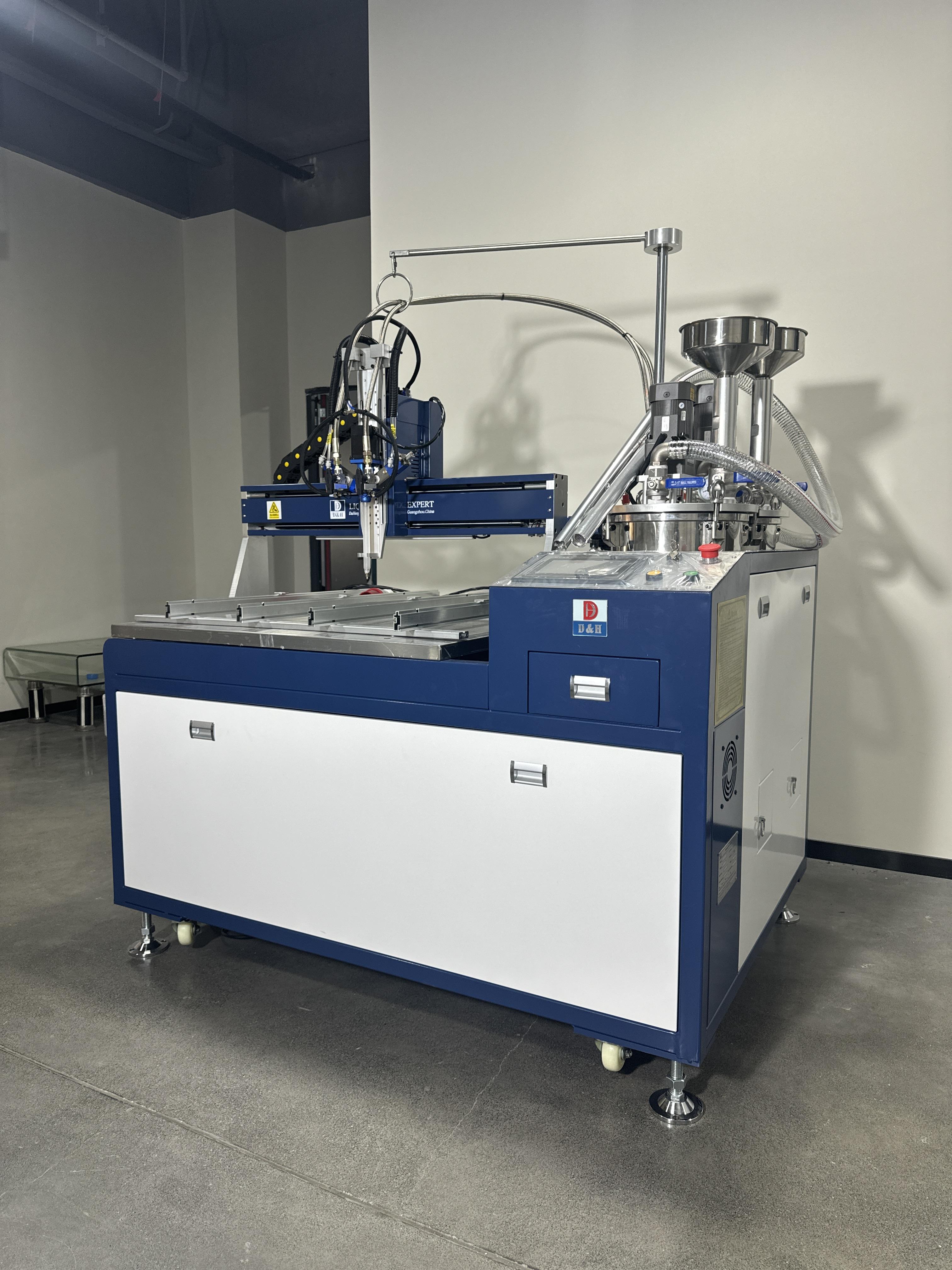

| Model & Type | PG-700 Full Auto Gluing Machine Dispenser |
| Certificate | CE, SGS |
| Dimension | 1500x1200x1500mm |
| N.W. | 260kg |
| XYZ Working Area | 700x700x80mm |
| Flow Speed | 0-66g/5s, or customized |
| Moving Speed | 0-300mm per second |
| Glue & Ratio | 1:1 to 20:1, Epoxy, Silicone, PU, UV |
| Repeatability | +/-0.02g |
| Accuracy | +/- 1% |
| Power | AC220V or AC 380V |
| Total Power Consume | 3kw - 5kw |
| Additional Function | Heating, Vacuum, Self-refilling, Self-cleaning |
| Application | LED module, display, LED lights, power supply, driver, motor, sensor, and transformer and so on^ |
