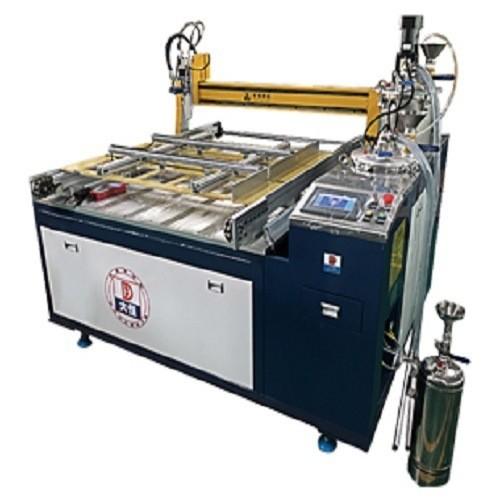

Epoxy Adhesive Dispensing Systems 2 Component Ab Dispensing Filling Machine 260kg

Model NO. : PGB-1200

Glue Type : Ab Glue

Application : Machinery & Hardware

Driven Type : Electric

Packaging : Cartons

Xyz Working Area : 700 X 700 X 30mm

Size : L1500xw1200xh1500mm

Weight : 260kg

Ratio : From 1:1 to 10:1

Stiring Method : Static or Dynamic

Pump : Daheng Patent Plunger Pump

out-Gluing Rate : 5-66g/5s

Mixing Precision : +/-1%

Container Volume : a:25L B:10L

Name : LED Driver Glue Dispenser

Transport Package : Quality

Specification : CE

Trademark : Daheng or OEM

Origin : Guangzhou China

HS Code : 8424899990

Supply Ability : 50PCS / Month

Package Size : 100.00cm * 100.00cm * 100.00cm

Package Gross Weight : 100.000kg

Automatic Grade : Automatic

Gluing Mode : Piston / Plunger Pump

Packaging Material : LED Display

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

: Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Contact Now

Epoxy Adhesive Dispensing Systems 2 component ab dispensing filling machine

Features and Benefits:
1, A system of metering, mixing and potting.
2, Accurate metering and even mixing helps to avoid possible waste of glue.
3, Shot size and positioning keep consistent, fast.
4, Good universality makes PGB-700DR suitable for applications of LED, electric and others glue potting needed.
5, Easy to program and operate.
6, Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing backflow device and other functional device.

Application:
Industry: Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, electronic ballast, other electronic products,weighh sensor and LED products where glue potting demanded.
Epoxy Adhesive Dispensing Systems 2 Component Ab Dispensing Filling Machine 260kg

Epoxy Adhesive Dispensing Systems 2 Component Ab Dispensing Filling Machine 260kg

Glue:
Epoxy, silica gel, AB glue, PU and other glue which need matching

Working area	700mmx 700mm×100mm
Output Speed	0.5g/s -12g/s (per single pump)adjustable Example: 1:1 ratio max output 24g/s 10:1 ratio max output 13.4g/s
processing craft	Dot ,line , arc , circle
Speed	0---250mm/s
Movement accuracy	≤±0.1mm
Mixing ratio	100:100 ---100:10
Gluing-out speed	1g/s --12g/s per single pump (Max dispensing volume is base on two part Ratio)
Repeated accuracy	≤±2%
Program memory	999pcs
Adhesive viscosity	300cps~20000cps
Operating mode	Manual /Automatic / third party signal
Proportional control	PLC/ double cylinder plunger pump
Flow control	Digital input
Program	Teaching program
Automatic controlling system	Touch screen / hand terminal
Mixing way	Dynamic mixing
Cleaning way	Self-cleaning
Glue Tank	Stainless tank A (25L) B(25L)
	Vacuum defoamation(-0.1MPa),4L/s
	Liquid level sensor and sound light alarm
	Tank stirring
Power supply	220V/50Hz/3500W
Input air pressure	0.4MPa-0.7MPa
Dimension
Materials	Industrial aluminium+stainless material

Optional Function:
1, evacuation
2, heating
3, Geared pump & plunger piston pump are available; Customers can choose to needs.
4, Control-card will be chosen to be added in to program to needs.

Epoxy Adhesive Dispensing Systems
D&H offers a wide range of dispensing systems for epoxy adhesives ranging from manual guns to fully automated industrial systems. Our two part adhesive dispensing systems can be used for a wide range of epoxies for bonding, sealing, potting, encapsulating, insulating and more. Epoxy dispensing systems are excellent for higher volume applications, precision dispensing or automating a dispensing process.

Common troubles and solutions

The most common trouble of glue dispenser is the valve . We list the effective solutions as follow:

1.Glue dispenser always drops
Drops always happened when valve closed . The reason may be low concentration of glue , big air-pressure or large diameter of needles.

Narrow needles will effect the flow of the liquid and cause back pressure . It will lead to dropping when the valve closed . Too narrow needles will effect the drainage of air when valve start to work, but it can be solved if change suitable needles .

Conical needles with less back pressure and liquid flow smoothly .

It is better to drainage of the air advance or use no-foam glue or deaeration to avoid the air cause dropping after valve closed .
2.Glue dispensing not evenly
The problem cause mainly because of the storage flow pressure tank or air pressure is not stable.

Inlet pressure regulating table should be set lower 10-15psi than factory minimum pressure . The pressure in pressure tank should be set upper than the middle pressure of regulating table . It should be avoided to use the pressure lower than the middle pressure of regulating table .

Control pressure of rubber valve at least higher than 60psi to assured glue evenly .

We should check the glue output speed at last . The glue is uneven if the time less than 15/1000s , the output speed more longer , the glue dispensing will be more stable .
3.Slow flow velocity
It should be changed the pipe from 1/4 to 3/8 if the flow velocity too slowly .

The pipe is the shorter the better if no requirement .
4.Air in the fluid
Excessive fluid pressure and short valve opening time may lead to the air infiltration liquid . We can use the conical needles and reduce fluid pressure .
5. Instant glue (quick adhesive) blocking in valve connector and pipes.
This problem is caused by heavy moisture and recycle instant glue . We should make sure to use new instant glue and wash the pipes with dry . Make sure air dry and add filter between plant air pressure and valve .
6.UV glue (UV curing glue )
Make sure to use black pipeline.

Don't add new UV glue to old UV glue in pressure tank , we should drain off the old UV glue before pouring new UV glue into pressure tank because the UV glue will produce bubble after a period of time and lead to glue dispensing unevenly .
7.Needles
Normally , it may cause air problem if the needle less than NO.20 . It is better to use large steel needles or conical needles to avoid to use winding needles
8. Epoxy cleaning
It is better to use storage pressure cylinder of methybenzene toluene to self-cleaning one time for each shift . The more frequently cleaning the better .
