High Precision Programmble 2K Meter and Mix Dispensing Machine Driven by Electricity

Model NO. : PGB-700

Driven Type : Electric

Transport Package : Poly Wood Case

Specification : 1200x1200

Trademark : Daheng / OEM

Origin : Guangzhou China

HS Code : 842489990

Supply Ability : 50PCS / Month

Precision : High Precision

Condition : New

Certification : CCC, PSE, FDA, RoHS, ISO, CE

Warranty : 12 Months

Automatic Grade : Automatic

Installation : Vertical

Customization : Available | Customized Request

Contact Now

1. Programmble 2K meter and mix dispensing machine

High Precision Programmble 2K Meter and Mix Dispensing Machine Driven by Electricity

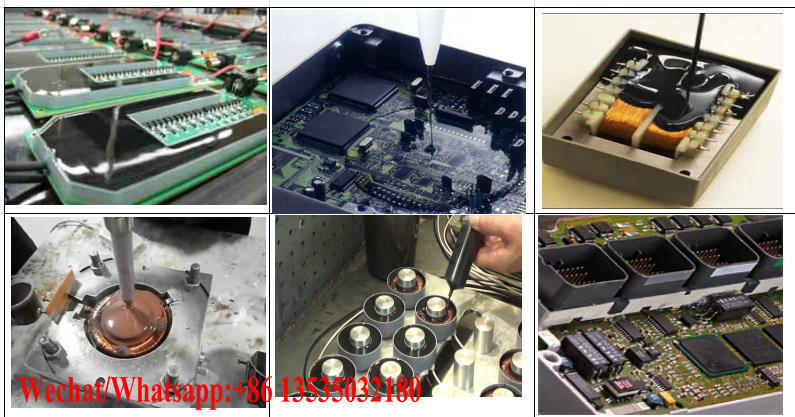

2. Application :
High Precision Programmble 2K Meter and Mix Dispensing Machine Driven by Electricity



3. Machine parameter
Item No.: PG-700
AB ratio: 100:100-100:10 adjustable
Movment Track: Dot/Line/Arc/Circle
Speed: 500mm/s(Movement speed) 1-12ml/s(gluing out speed)
Accuracy: ±2%(potting) ±2%(mixing)
Input pressure: 0.5MPa-0.7MPa
Viscosity: 50cps-30000cps(Viscosity can be down via heating glue)
Operation: Manual/Automatic
Meter Pump: Gear pump/Screw pump/Double cylinder plunger pump
Flow Control: Digital Input
Programming method: Teaching programming
Automated control system: PLC / touch screen (programming, modification, storage, etc.)
Glue control system: AB glue suction valve to achieve independent operation of AB glue
Mixed mode: dynamic static optional, instant mixing, easy to clean
Tank: stainless steel tank (60L),(50L),(40L),(25L),(10L)optional
Power supply: 220V/50Hz/1200W ( Test under heating unction is not power on)

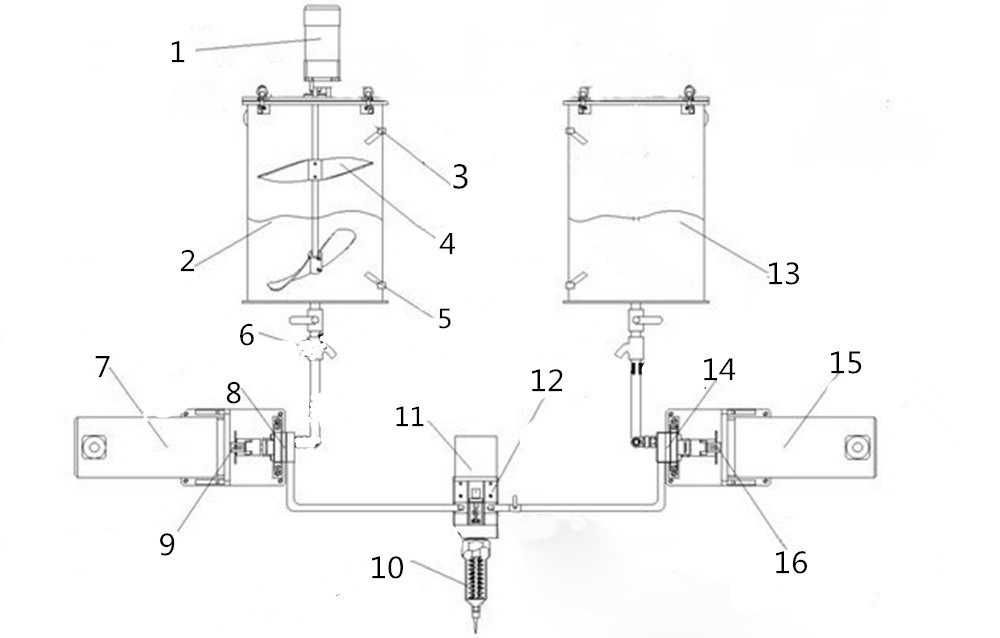

4. Working principle

Liquid A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine, draining out liquids individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.
High Precision Programmble 2K Meter and Mix Dispensing Machine Driven by Electricity
