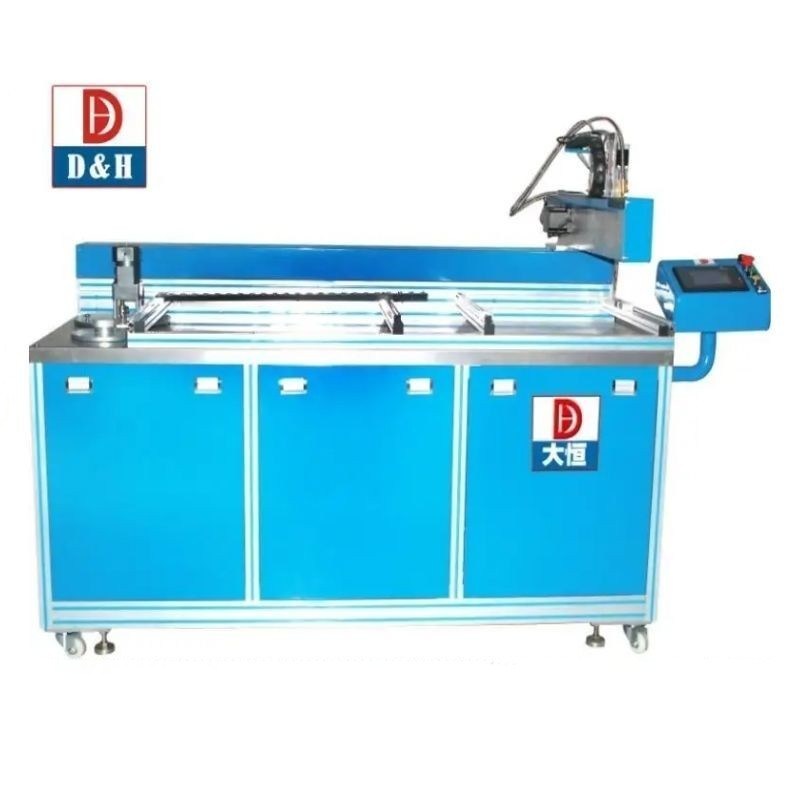

Customization Pgb1500 Automatic 2 Part Ab Silicone Sealant Mixing Dispenser for LED Lamps

Brand Name : D&H

Model Number : PGB-1500

Certification : CE,ISO,ROHS

Place of Origin : China

MOQ : 1 Unit

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50PCS / Month

Delivery Time : 5-8 Working days

Packaging Details : 155X135X170 CM

Model NO. : PG-1500

Glue Type : Epoxy, Silicone, PU & Other Double Components

Application : Machinery & Hardware

Driven Type : Electric

Packaging : Cartons

Xyz Working Area : 480X1500X100mm

Size : L1900xw1400xh1500mm

N.W. : 320kg

Ratio : From 1:1 to 10:1

Stiring Method : Static or Dynamic

Pump : Daheng Patent Plunger Pump

Mixing Precision : +/-1%

out-Gluing Rate : 5-66g/5s

Container Volume : a:25L B:10L

Name : Automatic Glue Dispenser for Rigid Strip

Transport Package : Carton Box Lined with Foaming PC

Specification : CE

Trademark : Daheng or OEM

Origin : Guangzhou China

HS Code : 8424899990

Automatic Grade : Automatic

Gluing Mode : Piston / Plunger Pump

Packaging Material : Plastic

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

  : Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Contact Now

PGB1500 Automatic 2 part AB silicone Sealant Mixing Dispenser for led lamps
Why Choose Us
PGB-1500 2K Dos AB component epoxy resin auto distribution potting machine for electronics PCB encapsulating
Auto Glue Dispenser for Epoxy Resin AB 1:1 2:1 3:1 4:1 5:1 Mixing Doming Liquid Glue Dispensing Machine Equipment
We specialize in different types of potting and dispensing system. No matter what your resin application requirements look like:we can do most of them in our fully equipped lab. We can handle 1- and 2-component polyurethanes, epoxies, acrylics, silicones,temperature, humidity and UV curing materials. They can be from low- to high-viscosity, filled or unfilled and even high abrasive for thermal conductivity.

Potting and encapsulation is the process of embedding products & assemblies in a liquid resin (potting compounds) to protect them against rough environment conditions. Potting can be performed in atmosphere pressure or even under vacuum, if high voltage insulation and high temperature differences are needed. Encapsulation of parts will stop corrosion of metals and reduce damage caused by vibration and mechanical stress.

We offer automatic ,se-mi automatic fluid dispensing potting machine and the related production line and vacuuming systems,2 Part Silicone plyurethane epoxy potting dispensing machine AB Resins compound dosing , dispensing ,potting system ,2K potting technology AB glue dispensing machine Epoxy dispensing machine Two-component dispensing machine,Dual-component dispensing machine Meter-mix dispensing machine,Resin dispensing machine Adhesive dispensing system,Dispensing robot with high precision Dispensing valve, Liquid dispenser , Automated dispensing equipment .
Product Description
Customization Pgb1500 Automatic 2 Part Ab Silicone Sealant Mixing Dispenser for LED Lamps

PGB-1500 ab dosing dispensing machine precisely metering, mixing and dispensing two-component medium to low-viscosity materials for potting, dispensing ,sealing, casting ,encapsulation and filling.
For variable ratio dispensing, the system handles ratios from 1:1 to 10:1.
The system is composed of AB tanks, metering pumps and motor, mixing pipe, dual valve, dynamic motor for dynamic stirring and 3-axis robotic platform.


Introduction :
1. Working Mode: controlled by PLC module and MCGS touch screen.
2.High precision valve: high speed, glue off clean, no glue drawing, no dropping. 3. Core metering pump specially design for different material from low to high viscosities.
4. Mix glue A & B more evenly; no more or no less for agent B.

Working principle :
Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.

Tank system technology:
1. Stainless panel vacuum pressure tank which can bear negative pressure of inner tank . 2. Tank with motor stirrer that prevent the glue from sediment and keep the potting material in constant temperature.
3 Tank with top/ high /low liquid sensors that ensure alarm warning when liquid higher or lower the setting level .
4 Tank with vacuum degas (degas time can be set through touch screen), so the material can be re-feeding through vacuum negative pressure .
5 Tank with pressure releasing ball valve ; the bottom of tank reserved back-flow connector and river closure ball valve.
6 Tank with heater which can preheat materials to assure good flowability .
7 Tank with artificial feeding mouth that can be added glue appropriately by hand . 8 Tank with silica-dryer which can prevent material especially PU from crystallization .
D&H Pump technology
1. Two cylinder plunger pumps work by durable motors. 2.The biggest flow volume :24g/s,Repetition accuracy:0.2g.
3.Also Suitablefor high viscosity glue: 50cps~35000cps.
4. Suitable for big flow dispensing or slight flow dispensing.
5. Suitable for frequent start and stop dispensing.
6. Anti-wear, Anti-corrosion, super long life time.
Valve technology
1. Dynamic mixing with stirring detecting function that ensure glue mixing evenly .
2 Stainless design of the glue touch surface to capture more higher material compatibility .
3 Glue valve with flow-back prevent function that can prevent glue from dropping when stop gluing .
4 Sealing parts of rod shaft adopt imported parts to keep more higher durability .
5 The self-cleaning function make machine cleaning more easier that you needn't dis-assembly the parts to wash . Cleaning time and
cleaning times could be set in the touch screen.
Specification
ITEM
Parameter
ITEM
Parameter
Mixing ratio
1:1--10:1 adjustable
Out-glue speed
1-12g/s per single pump
Working range
700*700*100mm
Accuracy
±2%(output volume)±2%(mixing)
Displacement speed
250MM/S
tolerance
≤0.2mm
Flow control
Digital input
Out-glue control system
AB glue back suction valve, achieve AB glue independent operation
Program memory
99-999PCS
Mixing method
dynamic mixing
Motion trail
Dot , line ,curve ,circle
Viscosity range
50-50000cps
Automatic controlling system
Touch screen (to achieve program programming, modification, storage and so on
Others
AB tank ,A pump,AB pipeline heating function
Company Profile
Daheng originally created technologies - double cylinder plunger pump, signle reciprocating pump, precision AB valve have been realized a new generation liquid metering and matching control, with high accuracy, variable, ceaseless, long life-time, which widely used on the industries of LED, outdoor lighting, cars, power supply, capacitance, transformer, ignition coil and other electronic components industries. All the equipments of Glue dispensing, glue pouring, glue spraying, glue coating, glue matching, gluing control are in one-stop service. 2 Part Silicone plyurethane epoxy potting dispensing machine
AB Resins compound dosing , dispensing ,potting system ,2K potting technology AB glue dispensing machine Epoxy dispensing machine Two-component dispensing machine,Dual-component dispensing machine Meter-mix dispensing machine,Resin dispensing machine Adhesive dispensing system,Dispensing robot with high precision Dispensing valve, Liquid dispenser , Automated dispensing equipment .
Application
Customization Pgb1500 Automatic 2 Part Ab Silicone Sealant Mixing Dispenser for LED Lamps
Service Term

1, Staff training Seller is responsible to provide machine's training including installation, debugging, maintenance to assured customer can totally use the operation skills and well acknowledge maintenance of machine .
2,Maintenance Service
2.1Seller provide one year warranty period and support free maintenance service during warranty . Software
upgrade service is provided for a long life time.
2.2 In case parts of the machine become broken within the warranty because of non-artificial factors, we send you part
replacement free, buyer pay for the shipment. Double-liquid valve should be bought at its cost price.
2.3If the parts of the machine become broken past warranty , the parts replacement should be shouldered by buyer.
