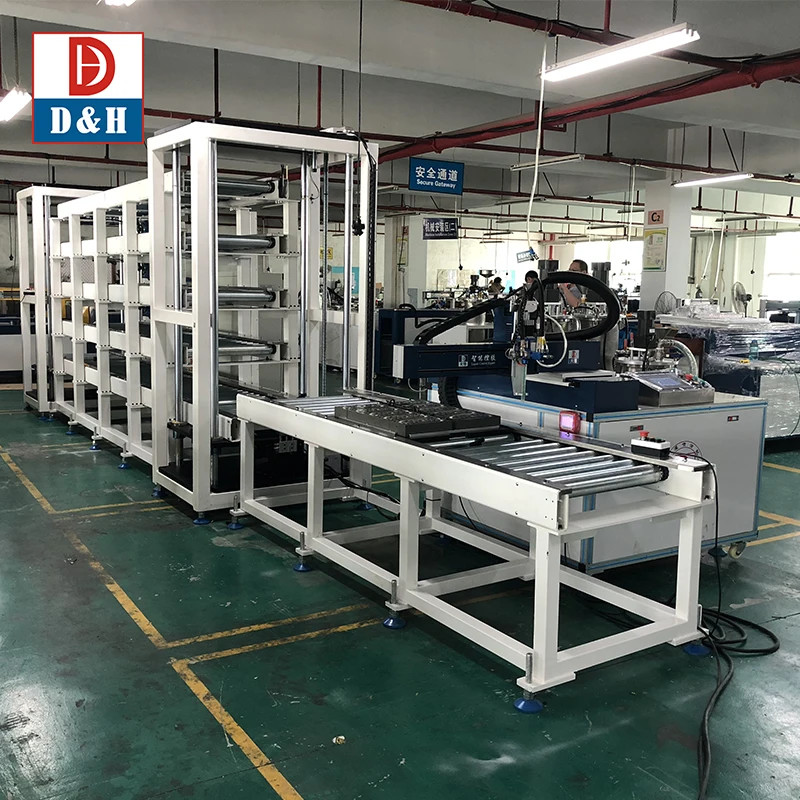

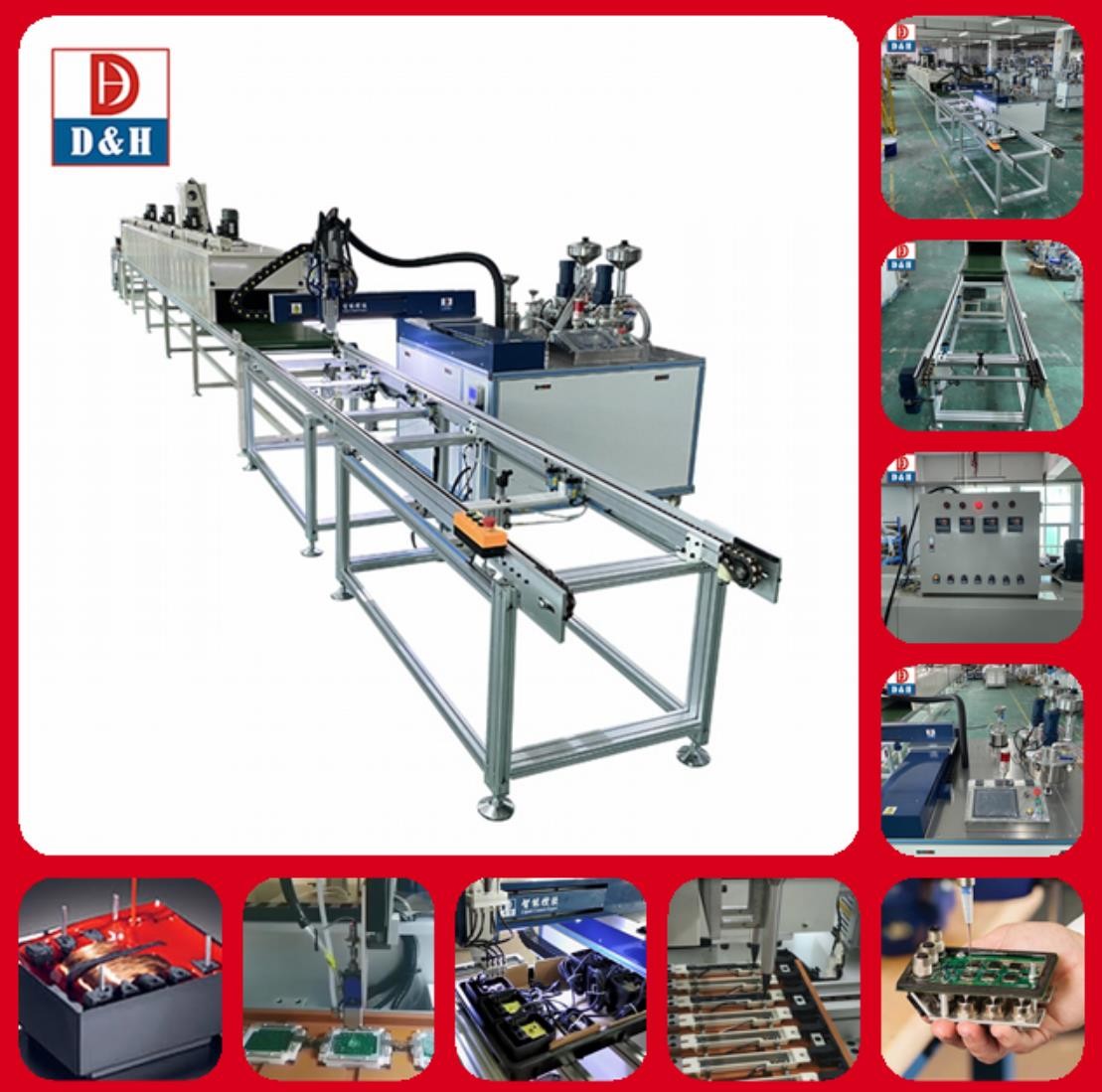

High-Performance AB Glue Potting Machine With Conveyor Systems Automatic Dispenser

Certification : CCC, FDA, RoHS, ISO, CE

Brand Name : D&H

Model Number : PGB-650B

Place of Origin : Made In China

MOQ : 1 Unit

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Packaging Details : Polywooden case

Model NO. : PGB-650B

Warranty : 12 Months

Automatic Grade : Automatic

Installation : Vertical

Driven Type : Electric

Transport Package : Poly-Wood Case

Specification : 650*550x100mm

Trademark : Daheng

Origin : China

HS Code : 8424899990

Supply Ability : 1000/Year

Package Size : 1890cm * 1360cm * 1920cm

Package Gross Weight : 590kg

After-sales Service : Provided

Precision : High Precision

Condition : New

Samples : US$ 11900/Piece 1 Piece(Min.Order) |

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Contact Now

Why Choose Us

High-Performance AB Glue Potting Machine With Conveyor Systems Automatic Dispenser

We Daheng Automation specialize in different types of potting and dispensing system. No matter what your resin application requirements look like: we can do most of them in our fully equipped lab. We can handle 1- and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. They can be from low- to high-viscosity, filled or unfilled and even high abrasive for thermal conductivity.

Potting and encapsulation is the process of embedding products & assemblies in a liquid resin (potting compounds) to protect them against rough environment conditions. Potting can be performed in atmosphere pressure or even under vacuum, if high voltage insulation and high temperature differences are needed. Encapsulation of parts will stop corrosion of metals and reduce damage caused by vibration and mechanical stress.

We offer automatic ,se-mi automatic fluid dispensing potting machine and the related production line and vacuuming systems cautomat glue silicone dispensing machine automatic glue dispenser 2 component glue dispenser 2 component mix glue machine ab glue automatic automatic glue dispensing automatic silicone dispensing machine electronic components making machine epoxi glue potting machine liquid glue dispenser resin dispensing machine automatic dispensing machine dispenser glue dispensing machine gluing machine dispenser machine glue mixing machine glue machine liquid dispenser epoxy doming machine for sale automatic dispenser automatic glue dispensing machine automatic dispensing machine dispenser glue machine gluing machine glue dispensing machine dispenser machine glue dispenser automatic dispenser liquid dispenser glue mixing machine dispensing machine 2 Part Silicone plyurethane epoxy potting dispensing machine AB Resins compound dosing , dispensing ,potting system ,2K potting technology AB glue dispensing machine Epoxy dispensing machine Two-component dispensing machine,Dual-component dispensing machine Meter-mix dispensing machine,Resin dispensing machine Adhesive dispensing system,Dispensing robot with high precision Dispensing valve, Liquid dispenser , Automated dispensing equipment

Introduction :

1. Working Area: controlled by PLC module and MCGS touch screen.

2.High precision valve: high speed, glue off clean, no glue drawing, no dropping.

3. Gear pump special for transparent glue.

4. Mix glue A & B more evenly; no more or no less for agent B.

Working principle :

Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.
High-Performance AB Glue Potting Machine With Conveyor Systems Automatic Dispenser

Tank system technology:

1. Stainless panel vacuum pressure tank which can bear negative pressure of inner tank .

2. Tank with motor stirrer that prevent the glue from sediment and keep the potting material in constant temperature.

3 Tank with top/ high /low liquid sensors that ensure alarm warning when liquid higher or lower the setting level

4 Tank with vacuum degas (degas time can be set through touch screen), so the material can be re-feeding through vacuum negative pressure .

5 Tank with pressure releasing ball valve ; the bottom of tank reserved back-flow connector and river closure ball valve

6 Tank with artificial feeding mouth that can be added glue appropriately by hand .

7 Tank with silica-dryer which can prevent material especially PU from crystallization .

D&H Pump technology

1. Two cylinder plunger pumps work by durable motors.

2. The biggest flow volume :24g/s,Repetition accuracy:0.2g.

3. Also Suitable for high viscosity glue: 50cps~35000cps.

4. Suitable for big flow dispensing or slight flow dispensing.

5. Suitable for frequent start and stop dispensing.

6. Anti-wear, Anti-corrosion, super long life time.

Valve technology

1. Two cylinder plunger pumps work by durable motors.

2.The biggest flow volume :24g/s,Repetition accuracy:0.2g.

3.Also Suitable for high viscosity glue: 50cps~35000cps.

4. Suitable for big flow dispensing or slight flow dispensing.

5. Suitable for frequent start and stop dispensing.

6. Anti-wear, Anti-corrosion, super long life time.

Tech Data

Adjustable Ratio	1 :1 ---10:1 adjustable
Output Speed	0.5g/s -12g per single pump
Mixing accuracy	+/- 2%
Program memory	10pcs
Viscosity	50cps~35000cps
Operation mode	manual / automatic/ Third party signal
Ratio control	PLC/double cylinder plunger pump
Flow control	Digital input
Program mode	Tech program
Automatic control system	Touch screen and trigger
Mixed mode	Dynamic mixing (with self-cleaning function)
Tank	Stainless tank A and stainless tank B(10L,25L,40L optional)
	Liquid level sensor (low liquid level /high liquid level and limit liquid level)
	Tank stir
	Constant heat (temperature to 80°C)
	Y type Filter
Voltage	220V/50Hz/3500W
Input air pressure	0.4MPa-0.7MPa
Dimension	1200mm×600mm X1500mm
Machine frame	SPCC+Industrial aluminium +stainless +metal plate
Others	AB tank ,A pump,AB pipeline heating function

PLC Operation Controlling System

1 Dispensing volume is controlled by the speed of pump's motors ; Glue speed adjustable within the speed range .

2 Machine with detecting function that detect the speed and running time of pumps to ensure the ratio reliability.

3 Adjustable gluing-out volume make sure glue A/B dispense out at the same time from glue valve to get better glue mixing effect .

4 Machine with gel resistance calculator , which prevent the mixture curing inside .

5 You can set single gluing-out and steady gluing-out function to meet up with your different process requirement .

6 Whole machine system and function is controlled by Panasonic PLC and MGCS touch screen .

7 Reserved PLC communication interface, which easy connecting with outside device .

8 Equipped with a safety lock to prevent staff from wrong operation .

Application

1.Potting&Encapsulation &Casting: electronics componnets , PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace parts....

2.Dispensing&Dosing : LED strip , led lamp , led bulb , aluminum,led screen , display module ,medical parts,medical liquid filling ....

3.Bonding&doming : LCD screen ,LOCA bonding,ABS plastic,different types of stickers , badge , keychains , souvenirs ,arts , photo frame , and other arts graphics....

Applicable material

1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, UV materials and so on .

Service Term

1, Staff training Seller is responsible to provide machine's training including installation, debugging, maintenance to assured customer can totally use the operation skills and well acknowledge maintenance of machine .

2,Maintenance Service

2.1Seller provide one year warranty period and support free maintenance service during warranty . Software upgrade service is provided for a long life time.

2.2 In case parts of the machine become broken within the warranty because of non-artificial factors, we send you part replacement free, buyer pay for the shipment. Double-liquid valve should be bought at its cost price.

2.3If the parts of the machine become broken past warranty , the parts replacement should be shouldered by buyer.
