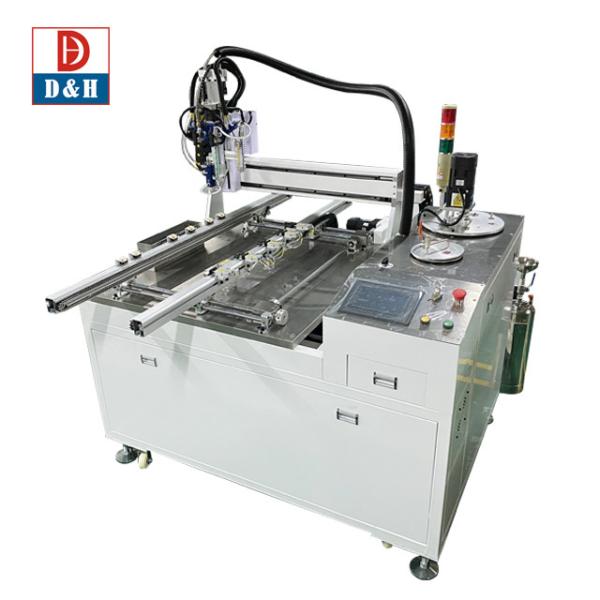

Vacuum Encapsulation Machine Vacuum Potting System

Brand Name : D&H

Model Number : PGB-700

Certification : CE,ISO,ROHS

Place of Origin : MADE IN CHINA

MOQ : 1 Unit

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 unit per month

Delivery Time : 5-8 Working days

Packaging Details : 155X135X170 MM

Key words : Adhesive Dispensing Robot For High Temperature Potting Compound

Suitable materials : PU,EPOXIES ,SILICONES ...

PU,EPOXIES ,SILICONES ... : 700x700x100mm

Functions : re-filling ,vacuum , heat , stirring ,self-cleaning

Contact Now

vacuum encapsulation machine vacuum potting system 700 X 700 X 80mm

Model	PGB-700
Dimension	150011001600mm
XYZ working area	700700100mm
AB ratio	100:100-100:10 adjustable
Movement Track	Dot/Line/Arc/Circle
Speed	500mm/s (Movement speed) 1-12g/s (gluing out speed)
Accuracy	±0.03mm (Repeatability) ±2% (potting) ±2% (mixing)
Program	99pcs/more
Input pressure	0.5MPa-0.7MPa
Viscosity	50cps-30000cps (Glue can be heated to decrease viscosity
Operation Method	Automatic
Meter Pump	Gear pump/Screw pump/Double cylinder plunger pump
Flow Control	Digital Input
Programming method	Teaching programming
Automated control syste	PLC / touch screen (programming, modification, storage, etc.)
Glue control system	AB glue suction valve to achieve independent operation of AB glue
Mixed mode	Dynamic and static optional, instant mixing, easy to clean
Tank	Stainless steel(40L),(25L),(10L)optional
Power supply	220V/50Hz/1200W ( The power consumption without heater)

Features and Benefits:
1, A system of metering, mixing and potting.
2, Accurate metering and even mixing helps to avoid possible waste of glue.
3, Shot size and positioning keep consistent, fast.
4, Good universality makes PGB-700DR suitable for applications of LED, electric and others glue potting needed.
5, Easy to program and operate.
6, Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing backflow device and other functional device.

Application:
Industry: Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, electronic ballast, other electronic products and LED products where glue potting demanded.

Glue:
Epoxy, silica gel, AB glue, PU and other glue which need matching

Optional Function:
1, evacuation
2, heating
3, Geared pump & plunger piston pump are available; Customers can choose to needs.
4, Control-card will be chosen to be added in to program to needs.

Product Tags:

Vacuum Encapsulation Machine

Vacuum Potting System
